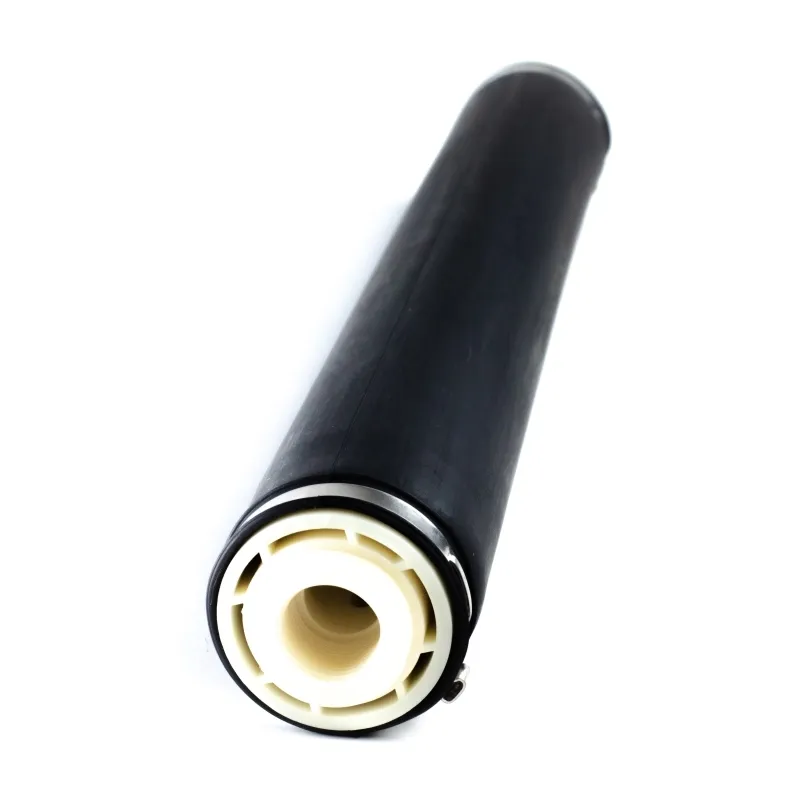

Best Fine Bubble Tube Diffusers For Narrow Aeration Channels

Are you looking to enhance the efficiency of your narrow aeration channels? If so, you've come to the right place! In our comprehensive guide, "Best Fine Bubble Tube Diffusers for Narrow Aeration Channels," we delve into the world of advanced aeration technology that promises to optimize water treatment processes. Whether you're a wastewater treatment professional, an environmental engineer, or simply someone interested in sustainable practices, this article will equip you with the knowledge to choose the ideal fine bubble tube diffusers tailored to your specific needs. Discover how these innovative devices can boost oxygen transfer efficiency, improve mixing, and reduce energy consumption, all while contributing to healthier aquatic ecosystems. Join us as we explore the top contenders in the market, highlighting their unique features and benefits, so you can make an informed decision for your aeration projects. Read on to unlock the potential of your narrow aeration channels!

1. Oxygenation Challenges in Long

Oxygenation Challenges in Long Narrow Aeration Channels

Channel Floor Coverage

A pivotal consideration for achieving effective oxygenation in narrow channels is ensuring adequate channel floor coverage. In long, narrow aeration setups, the spatial constraints can lead to uneven distribution of both air flow and subsequently, oxygen transfer. Fine bubble tube diffusers are particularly advantageous in this regard. Their design allows for a greater surface area in contact with the water, which enhances oxygen transfer efficiency. When strategically positioned along the channel floor, these diffusers ensure that the entire length of the channel receives sufficient aeration. This comprehensive coverage helps mitigate issues related to stagnant zones, where inadequate oxygen levels might otherwise inhibit microbial activity necessary for effective wastewater treatment.

Tube Diffuser Manifold Design

Headloss Minimization

Air Flow Uniformity

Uniform air flow is crucial for maximizing the efficiency of oxygen transfer throughout the entire aeration system. Any uneven distribution can lead to localized areas where oxygen is abundant, while other regions may suffer from deoxygenation. Fine bubble tube diffusers excel in providing uniform air flow, as the finer bubbles they produce enhance overall gas transfer to the water. The small diameter of the bubbles increases their surface area relative to their volume, which facilitates better oxygen absorption into the water column. Additionally, when integrated with an efficiently designed aeration manifold, air flow uniformity is further enhanced. Using multiple diffusers with tailored configurations promotes even distribution, maximizing the impact of the air flow delivered to the wastewater treatment process.

Narrow Basins

Narrow Basins: Optimizing Aeration with Fine Bubble Tube Diffusers

Channel Floor Coverage

One of the primary considerations when designing an aeration system for narrow channels is ensuring adequate floor coverage. Fine bubble tube diffusers operate by releasing small air bubbles through a porous material, which maximizes the surface area for oxygen transfer. In narrow basins, achieving complete floor coverage is critical; uneven distribution can lead to dead zones where oxygen levels remain low, inhibiting the biological treatment process.

Fine bubble tube diffusers are typically designed with a series of discrete tubes that span the channel floor. These tubes can be strategically placed to ensure that the entire surface area is engaged in aerating the water. The placement of these diffusers is not merely about coverage; it also influences how effectively the bubbles rise to the surface, facilitating optimal oxygen absorption and minimizing energy waste. By using a carefully planned layout that maximizes surface area coverage, operators can ensure that even narrow channels receive consistent aeration, improving the overall treatment efficiency.

Tube Diffuser Manifold Design

The design of the aeration manifold is another critical factor that plays a pivotal role in the operation of fine bubble tube diffuser systems in narrow channels. An effective manifold design helps distribute air evenly across all diffusers, ensuring that each tube receives a consistent flow of air. This uniformity is essential to maintain the same bubble size and distribution across the entire channel.

Modern manifold designs for narrow channels often incorporate features such as adjustable headers or flow control valves. These features allow operators to fine-tune the air flow to each diffuser, accommodating variations in water depth, flow velocity, and sedimentation patterns. An optimal manifold design not only enhances aeration efficiency but also significantly decreases the risk of uneven air distribution across the diffuser tubes. This uniformity is vital for maintaining effective oxygen transfer rates and ensuring the biological processes operating within the treatment system function maximally.

Headloss Minimization

Minimizing headloss—resistance to airflow within the aeration system—is another crucial aspect in the design of fine bubble tube diffusers, particularly in narrow aeration channels. Excessive headloss can lead to inefficient operation, increased energy costs, and variable aeration performance. The layout and design of the diffusers and manifolds influence overall system headloss significantly.

Careful consideration of pipe diameter, length, and the type of fittings used can help minimize resistance to airflow. In narrow channels, the choice of materials and diffuser spacing also impacts headloss. For example, employing lightweight, flexible tube materials can help reduce both structural load and hydrodynamic resistance. Advanced designs may also allow for cleanout access or inline adjustment features to enable easy maintenance, further optimizing headloss and overall system flow characteristics.

Air Flow Uniformity

Airflow uniformity is fundamental to the success of any aeration system, especially in narrow aeration channels where water flow dynamics can be complex. Variations in flow rates across the channel can lead to uneven air distribution, resulting in inefficient oxygen transfer and reduced biological treatment efficacy.

Fine bubble tube diffusers excel in promoting uniformity by producing a large quantity of small bubbles that disperse evenly through the water column. To further enhance airflow uniformity, the energy supplied to the system must be consistent. This can be achieved through effective manifold design that includes features allowing for precise control over the air supply to each diffuser. Monitoring systems can also be incorporated to provide real-time data on air distribution, allowing operators to adjust flows dynamically based on varying channel conditions.

In conclusion, optimized aeration strategies in narrow channels through the use of fine bubble tube diffusers are paramount in wastewater treatment applications, impacting treatment efficiency, energy consumption, and overall system performance. By prioritizing channel floor coverage, thoughtful diffuser manifold design, headloss minimization, and airflow uniformity, facilities can significantly enhance their aeration processes while facilitating sustainable wastewater management solutions.

2. Disc vs. Tube Diffuser Spatial Suitability

When considering aeration methods for wastewater treatment, particularly in narrow channels, the choice between disc and tube diffusers is pivotal. This decision must factor in essential operational parameters, such as channel floor coverage, diffuser manifold design, headloss minimization, and air flow uniformity. Each diffuser type offers distinct advantages and limitations that determine their spatial suitability in specific applications.

Channel Floor Coverage

Fine bubble tube diffusers are uniquely suited to narrow channel aeration due to their design, which enables effective coverage of channel floors. Unlike disc diffusers that typically feature a larger surface area, tube diffusers are elongated, allowing for efficient integration into limited spaces. This configuration ensures that the bubbles generated can contribute to maximum oxygen transfer, while simultaneously minimizing dead zones where stagnant water can accumulate. The elongated shape of the tube diffusers means they can be spaced more closely together, accommodating the narrower width of the channels without sacrificing aeration efficiency.

In contrast, disc diffusers often deliver fewer advantages in terms of floor coverage due to their circular shape. While they do facilitate a higher surface area for bubble production, the distribution of air might not be as effective in narrow channels. The capability of tube diffusers to adapt to various widths makes them particularly advantageous for applications where width constraints are a significant concern. Furthermore, when installed correctly, tube diffusers can maintain a more even distribution across the channel floor, thereby enhancing oxygen transfer rates throughout the entirety of the aeration zone.

Tube Diffuser Manifold Design

The design of the aeration manifold is fundamental in optimizing the performance of tube diffusers within narrow channels. A well-engineered aeration manifold can significantly influence the distribution of air to each diffuser, ensuring that even in tight configurations, every tube receives a sufficient air flow. Tube diffusers are commonly arranged in a linear fashion, which allows for easier management of the manifold system. A manifold with larger diameter perforations and appropriate spacing ensures that air supply maintains a steady flow, promoting efficient oxygenation throughout the entire aeration process.

Contrastingly, while disc diffusers typically require a more complex manifold design due to their shape, the linear nature of tube diffusers simplifies this aspect considerably. This simplicity can often lead to reduced installation costs and time, as well as less complicated maintenance procedures. Understanding the manifolds' roles can thus help engineers select the most suitable diffuser configuration based on specific spatial conditions.

Headloss Minimization

Another major consideration when evaluating the spatial suitability of fine bubble tube diffusers versus disc diffusers in narrow aeration channels is the issue of headloss. Given the restricted dimensions of narrow channels, headloss becomes a critical factor influencing overall operational costs and efficiency. Tube diffusers, due to their sleek profile and streamlined design, tend to exhibit less resistance to air flow compared to disc diffusers. The flatter shape of tube diffusers permits more straightforward air flow dynamics, reducing turbulence and, thus, the friction losses that contribute to increased headloss.

In practice, reduced headloss translates into lower energy consumption, which is an essential consideration for any wastewater treatment operation. The efficiencies garnered from tube diffusers facilitate mixed gas distributions with minimal energy input, which is especially advantageous when operating on a limited budget. Conversely, disc diffusers can inherit higher headloss rates, which may necessitate larger air compressors and additional power consumption, undermining their potential cost-effectiveness.

Air Flow Uniformity

Furthermore, air flow uniformity is a critical quality of effective aeration systems. Tube diffusers enhance this characteristic significantly due to their even distribution of air flow across the aeration surface. The narrow design allows for a more uniform release of fine bubbles, thereby ensuring consistent oxygen transfer throughout the narrow channel. This uniformity is essential in maintaining healthy microbial populations and efficient biochemical reactions in wastewater treatment systems.

Disc diffusers, by contrast, can present challenges in achieving uniform air flow due to their design, particularly in narrower configurations where localized air pockets may form. This can lead to uneven oxygen distribution, potentially compromising the entire aeration process. Tube diffusers mitigate this risk by ensuring a consistent bubble size and flow delivery, resulting in more efficacious oxygen transfer rates.

In summary, the choice between disc and tube diffusers for narrow channel aeration systems heavily relies on assessing channel floor coverage, the design of the air manifold, headloss constraints, and the importance of air flow uniformity. In scenarios strictly confined by spatial limitations, fine bubble tube diffusers stand out as the more suitable solution, demonstrating exceptional performance through thoughtful design and adaptability in narrow environments.

3. Dual-Tube Assembly and Manifold Integration

Dual-Tube Assembly and Manifold Integration in Fine Bubble Tube Diffusers for Narrow Aeration Channels

The importance of effective aeration in wastewater treatment processes cannot be overstated, particularly in applications involving narrow channels where space is limited. One of the most popular methods to achieve this is through the use of fine bubble tube diffusers. These systems are designed to provide a more uniform distribution of air, enhancing oxygen transfer efficiency while minimizing energy consumption. Among the key components of these systems is the dual-tube assembly and manifold, which are critical for optimizing performance and ensuring the longevity of the diffuser.

Channel Floor Coverage

The effective design of a dual-tube assembly in fine bubble diffusers must consider channel floor coverage—an essential factor that directly influences aeration efficiency. For narrow aeration channels, maximizing the effective coverage is vital. The dual-tube assembly allows for a higher density of air outlets and ensures that bubbles are evenly distributed across the channel's width. This arrangement minimizes areas where the oxygen may not reach, facilitating faster biological reactions and promoting better wastewater treatment.

The strategic positioning of the dual-tube assembly ensures that the full length of the narrow channel receives adequate aeration. By increasing the interaction between rising bubbles and the wastewater, fine bubble tube diffusers also improve mixing, further enhancing aeration efficacy.

Tube Diffuser Manifold Design

The design of the aeration manifold is another critical factor that influences the performance of a fine bubble tube diffuser in narrow channels. Optimized manifold systems, capable of accommodating the dual-tube assembly, enable seamless integration with existing aeration infrastructure. Constructed from durable materials resistant to corrosive wastewater conditions, these manifolds serve as the backbone of the aeration system.

A well-engineered manifold ensures that air is distributed evenly to each diffuser, assisting in the goal of uniform airflow. The manifold is designed to minimize sharp bends and constrictions, which can lead to increased headloss and reduce the overall efficiency of the aeration system. By adopting linear manifold designs with smooth transitions, operators can achieve better air distribution and reduce the likelihood of localized flow restrictions, thereby enhancing overall system performance.

Headloss Minimization

Headloss, or the loss of pressure in the system as air moves through the diffusers and manifold, is a critical consideration in the design of fine bubble tube diffuser systems. High headloss can lead to inefficiencies, requiring higher operational costs to maintain adequate airflow. However, thoughtful integration of dual-tube assemblies and manifolds can significantly minimize headloss.

Engineers focused on optimizing the architectural design of the manifold utilize advanced computational fluid dynamics (CFD) modeling to simulate airflow within the system. This analysis allows for adjustments that can drastically lower resistance, ensuring that air flows freely through both the manifold and the diffusers. By reducing headloss, the overall energy consumption of the aeration system is improved, allowing for lower operational costs and increased sustainability in wastewater treatment processes.

Air Flow Uniformity

Airflow uniformity is another essential criterion when evaluating the performance of fine bubble tube diffusers in narrow channels. In an efficient system, the objective is for each diffuser to release bubbles of consistent size and shapes that promote better contact with the wastewater. The dual-tube assembly is designed to optimize this uniformity, ensuring that each tube contributes evenly to the aeration process.

The manifold also plays a significant role in maintaining consistent airflow. With properly designed and integrated manifolds, the pressure differentials can be minimized across the diffusers, ensuring that all tubes receive a constant and reliable supply of air. This uniformity not only boosts oxygen transfer rates but also enhances the biological treatment process by providing optimal conditions for aerobic microorganisms.

In conclusion, the dual-tube assembly and manifold integration in fine bubble tube diffusers are paramount to achieving high-performance aeration in narrow channels. From maximizing channel floor coverage to minimizing headloss and ensuring airflow uniformity, these system components work synergistically to support efficient wastewater treatment operations. Well-executed designs and careful consideration of these factors can lead to significant improvements in aeration efficiency and overall system reliability, making fine bubble tube diffusers an excellent choice for narrow channel aeration.

4. Uniform Air Distribution and Headloss Control

Uniform air distribution and headloss control are critical considerations in the efficient operation of fine bubble tube diffusers used in narrow aeration channels. The design and implementation of these systems directly influence the performance and efficacy of wastewater treatment processes, which rely on the delicate balance of aeration to facilitate biological treatment mechanisms. A thorough understanding of how to achieve effective air distribution and manage headloss creates the foundation for a successful aeration system.

Channel Floor Coverage

For narrow channel aeration, effective channel floor coverage is essential to maximize the efficiency of the fine bubble tube diffuser system. These diffusers are typically arranged in a layout that optimizes the distribution of air throughout the channel. The design aims to ensure that bubbles are uniformly dispersed across the channel floor, minimizing the creation of dead zones or areas where minimal aeration occurs. When placed strategically, fine bubble tube diffusers can enhance mass transfer rates between the air and wastewater, promoting better dissolution of oxygen necessary for aerobic treatment processes.

Moreover, the spacing and alignment of the tube diffusers can be carefully calculated based on the channel width and depth. This attention to spatial configuration allows for an optimal bubble rise through the water column, enhancing oxygen transfer efficiency while avoiding excessive turbulence that could disrupt the biological processes. Employing a diffuser layout that achieves full coverage of the channel floor allows for consistent aeration across the surface area, ensuring that all regions of the wastewater body receive the necessary oxygen supply.

Tube Diffuser Manifold Design

A well-designed aeration manifold is crucial in the effective operation of fine bubble tube diffusers. The manifold is responsible for distributing the compressed air evenly to each diffuser, ensuring that each tube receives a consistent airflow. Advanced manifold design involves a network that can adjust flow rates dynamically based on the specific aeration demands of different channel sections. This adaptability can be achieved through pressure regulation systems that balance airflow to individual diffusers, thus promoting uniform air distribution.

Furthermore, the manifold's materials and construction are paramount to durability and efficiency. A robust and lightweight material can minimize the overall weight of the system while resisting corrosion, ensuring a longer lifespan. Additionally, the manifold design must incorporate provisions for easy maintenance—this not only facilitates repairs and replacements but also contributes to long-term operational reliability.

Headloss Minimization

Headloss is a critical factor that directly impacts the energy consumption of aeration systems and the overall efficiency of fine bubble tube diffusers. The design of the tube diffusers and associated manifolds should aim to minimize headloss while maintaining effective air delivery. The introduction of advanced diffuser technologies, such as those that use optimally-sized orifices, can significantly reduce pressure losses associated with air passage, promoting greater efficiency throughout the aeration process.

Additionally, proper sizing of air delivery pipelines and well-optimized channel slopes can contribute to minimizing headloss. Engineers must conduct thorough assessments of airflow dynamics as they relate to friction losses along every segment of the system to ensure that air pressure and flow rates are sufficient to deliver the needed aeration without incurring excessive energy costs. Implementing strategies for headloss minimization not only improves performance but also contributes to more sustainable operations by reducing energy consumption.

Air Flow Uniformity

Ensuring uniform airflow is imperative for maximizing the effectiveness of narrow channel aeration systems. Variations in airflow can lead to uneven oxygen distribution, which can negatively impact the biological processes taking place in the wastewater treatment channel. Solutions such as adjustable flow control devices and variable speed blowers can be incorporated into the design to promote consistency in air supply.

Fine bubble tube diffusers provide an intrinsic advantage in achieving uniform air distribution due to their ability to generate small bubbles that rise slowly through the water column. Small bubbles are not only more effective at transferring oxygen but also aid in creating a more uniform distribution compared to larger bubbles. Furthermore, the establishment of optimal spacing and depth for tube diffusers ensures that air is diffused evenly, providing a stable environment for aerobic microorganisms.

Maximizing the efficiency of narrow channel aeration through uniform air distribution and headloss control involves a comprehensive approach that blends technical design with practical application. By focusing on channel floor coverage, innovative manifold designs, headloss minimization strategies, and ensuring consistent airflow, practitioners can enhance the effectiveness of fine bubble tube diffusers, leading to improved operational performance and sustainability in wastewater treatment processes.

5. Equipment Recommendations for Channel Geometry

Equipment Recommendations for Channel Geometry: Best Fine Bubble Tube Diffusers for Narrow Aeration Channels

When dealing with narrow aeration channels, achieving optimal aeration efficiency while minimizing operational challenges is a complex task. The design and selection of equipment, particularly fine bubble tube diffusers, play a critical role in maintaining effective aeration in these confined spaces. In this section, we will explore essential recommendations for choosing equipment that caters specifically to the unique demands of narrow channel geometry.

Channel Floor Coverage

A primary consideration in the implementation of fine bubble tube diffusers in narrow aeration channels is ensuring adequate coverage of the channel floor. This aspect is crucial because uniform air distribution leads to enhanced oxygen transfer efficiency and improved overall water quality. Unlike wider channels where diffusers can be positioned more flexibly, narrow channels require precise placement and selection of diffuser configurations.

The use of fine bubble tube diffusers allows for deeper submersion and optimized floor coverage due to their extended lengths and orientation. Ideally, they should be installed parallel to the flow direction while ensuring that the distance between adjacent diffusers is calculated to achieve maximum saturation without creating dead zones, where the water may not receive adequate aeration. To achieve this, measurements of the channel geometry should inform the number and positioning of diffusers, ensuring that the entire floor area is uniformly covered.

Tube Diffuser Manifold Design

The integrity of the tube diffuser assembly relies heavily on the design of the aeration manifold, which supplies air to the fine bubble tube diffusers. Within narrow channels, the manifold should be designed with precision to balance air distribution across multiple diffusers while accommodating the constraints of limited space.

For optimal performance, the manifold should feature a compact yet robust design that minimizes structural bulk while still allowing for easy maintenance access. Utilizing a segmented manifold design can effectively prevent air stagnation and facilitate uniform airflow by strategically locating pressure measurement points. This allows operators to monitor air flow rates actively, ensuring that air delivery to each diffuser is equalized.

It’s also advantageous to consider the material choice for the manifold system. Durable materials resistant to corrosion and physical wear can significantly extend the lifespan of the aeration system in harsh environments. Upgraded elastomers or coated metals can improve resilience without sacrificing performance, which is particularly beneficial in situations where water quality fluctuations occur.

Headloss Minimization

In narrow channel aeration systems, headloss can greatly diminish efficiency and air delivery to the diffusers. The design of the aeration manifold plays a critical role in minimizing headloss, as improper flow paths can lead to uneven distribution of air pressure.

To combat headloss, constructors should adopt streamlined design principles for all components of the aeration system. Utilizing smooth curves instead of sharp angles in pipe fittings, minimizing junctions and restrictions, and ensuring that all connections fit tightly without gaps can drastically reduce turbulence and pressure drops. Another solution is to size the manifold appropriately to handle the anticipated air flow rates, which aids in maintaining a lower headloss throughout the system.

Choosing fine bubble tube diffusers with a lower or optimized resistance to airflow can also contribute significantly to headloss reduction. When selecting fine bubble diffusers, operators can find those specifically engineered for efficiency to decrease back pressure while providing sufficient oxygen transfer.

Air Flow Uniformity

Achieving uniform air flow is paramount for the efficiency of fine bubble tube diffusers in narrow aeration channels. Irregular air distribution can result in zones of stagnation, where dissolved oxygen levels fall below optimal conditions, leading to poor treatment outcomes.

To ensure consistent air flow uniformity, a combination of a well-designed manifold and the strategic arrangement of diffusers is essential. Adjustments can be made to airflow rates based on the specific demands of the water body and any changes in organic loading or seasonal variations. Additionally, the selection of diffusers with appropriate pore sizes can influence bubble rise velocity, allowing for better mixing and distribution of air in the water column.

Moreover, the utilization of adjustable flow valves on the manifold provides the flexibility needed to maintain balance as conditions fluctuate, allowing operators to optimize performance continually while accommodating changes in water characteristics or aeration requirements.

In conclusion, the successful implementation of fine bubble tube diffusers in narrow aeration channels hinges on precision engineering and strategic planning. Focusing on channel floor coverage, manifold design, headloss minimization, and air flow uniformity will significantly enhance aeration efficiency and ultimately yield better treatment results in wastewater management systems.

Conclusion

In conclusion, selecting the right fine bubble tube diffusers for narrow aeration channels is crucial for optimizing aeration efficiency and ensuring a sustainable wastewater treatment process. After two decades of industry experience, our insights enable us to guide you through the intricate landscape of aeration solutions. We've carefully examined the finest options on the market, prioritizing durability, performance, and cost-effectiveness. As you embark on your journey to enhance your aeration systems, remember that the right diffuser can make all the difference in achieving your operational goals. Trust in our expertise and commitment to quality as you implement these advanced solutions, knowing you have a partner with a proven track record. Embrace innovation, maximize efficiency, and let us help you navigate the future of wastewater management with confidence.
