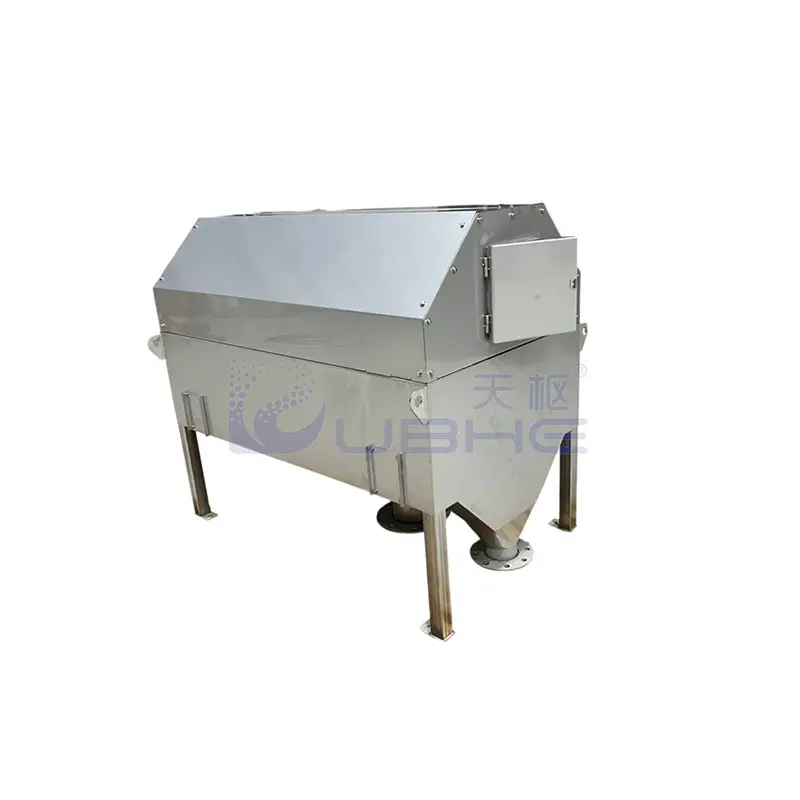

How Rotary Drum Screens Effectively Capture Solid Debris

In an ever-evolving world where waste management and water treatment play pivotal roles in preserving our environment, innovative solutions continue to emerge. One such solution gaining momentum is the rotary drum screen—a powerful tool that effectively separates solid debris from liquids, ensuring cleaner and more sustainable processes. But how exactly do these engineering marvels operate? In this article, we delve into the functionality and advantages of rotary drum screens, exploring their crucial role in various industries from wastewater treatment to food processing. Join us as we uncover the technology behind these dynamic systems and discover why they are becoming indispensable in tackling the challenges of solid waste management. Whether you're an industry professional or simply curious about modern filtration techniques, this deep dive into rotary drum screens promises to enlighten and engage!

1.The basic working principle of a rotary drum screen

In the ever-evolving field of wastewater treatment, the rotary drum screen has emerged as an indispensable tool in the pretreatment process. Its design and functionality have made it a preferred choice for industries looking to efficiently and effectively capture solid debris from liquid streams, thereby enhancing overall system performance. Understanding the basic working principle of a rotary drum screen reveals not only its operational efficiency but also its significance in comprehensive wastewater management.

At its core, the rotary drum screen is engineered to filter solids from liquids by employing a cylindrical screen mechanism. This equipment operates on the principle of gravity and mechanical separation. The rotary drum itself is a perforated cylinder or mesh, usually inclined slightly to facilitate the flow of the incoming wastewater. As the wastewater enters the drum, gravity causes the flow to descend towards the bottom of the drum, where the solids are trapped on the surface of the screen while the clarified liquid passes through the perforations.

The rotation of the drum is a crucial aspect of its functionality. As the drum turns, the accumulated debris is lifted and subsequently discharged from the screen, allowing new wastewater to enter the drum for filtration. This continuous movement ensures that the screen does not become clogged, which is a common issue in static screening methods. The design typically features a motor that allows for adjustable rotation speeds, optimizing the removal of solids based on the characteristics of the wastewater being processed.

The size of the perforations in the drum screen can be adjusted according to the specific application. Smaller apertures capture finer solids, while larger openings are suitable for coarser materials. This adaptability makes the rotary drum screen a versatile solution in various industries, including municipal wastewater treatment, food processing, and pulp and paper manufacturing. Its ability to selectively filter particulates based on size enhances the operational effectiveness of downstream processes.

An essential aspect of rotary drum screens is their efficiency in handling varying flow rates. Unlike other drum screen equipment, which might struggle with fluctuating input volumes, the rotary design easily accommodates changes without compromising performance. This characteristic is particularly beneficial in dynamic environments where wastewater volumes can drastically shift due to operational changes or seasonal variations.

Additionally, rotary drum screens play a pivotal role in reducing operational costs and maintenance. Because of their self-cleaning feature, which prevents the buildup of solids on the screen, they require less frequent manual intervention compared to static screens. Furthermore, their design facilitates easy access for maintenance tasks, ensuring that the equipment remains in optimal working condition with minimal downtime.

Beyond the immediate advantages of solid removal, rotary drum screens significantly contribute to the overall pretreatment process in wastewater treatment facilities. By efficiently removing solids, they reduce the load on downstream treatment processes, such as biological treatment and membrane filtration. This leads to enhanced efficiency and lower operational costs for the entire system, making rotary drum screens an investment that pays off in long-term efficiency and sustainability.

Moreover, the integration of rotary drum screens into wastewater pretreatment equipment setups enhances the overall water quality. By effectively capturing a wide range of particulate contaminants, these screens facilitate compliance with environmental regulations and protect the delicate ecosystems downstream. The elimination of debris not only safeguards mechanical components from damage but also ensures the resulting effluent meets required standards for discharge or reuse.

In summary, the rotary drum screen operates on the principles of gravity and mechanical separation, utilizing a rotating cylindrical screen to effectively capture solid debris from wastewater. Its adaptable design, combined with the self-cleaning mechanism and ability to manage varying flow rates, positions it as a key player in the realm of drum screen equipment. As industries continue to prioritize efficient and sustainable wastewater management solutions, the rotary drum screen serves as an invaluable asset in the pretreatment process, underscoring its critical role in the evolving landscape of environmental protection.

2.Types of solid debris this equipment captures

Types of Solid Debris Captured by Rotary Drum Screens

1. Organic Matter

One of the most common types of solid debris captured by rotary drum screens is organic matter, which includes food waste, plant material, and other biodegradable substances. This type of debris often comes from municipal wastewater sources as well as industrial effluents. The efficient removal of organic solid debris is particularly critical, as it not only minimizes the potential for clogs in the treatment system but also reduces the organic load on downstream processes. By using drum screen equipment, facilities can ensure that organic matter is effectively filtered out, preventing it from disrupting the biological processes that occur during wastewater treatment.

2. Inorganic Solids

Rotary drum screens also excel at capturing inorganic solids, such as sand, gravel, plastic fragments, and metal shavings. These materials can enter treatment facilities through various sources, including stormwater runoff and industrial discharges. The presence of inorganic solids in wastewater poses significant risks, as they can cause wear and tear on equipment, reduce the efficiency of biological treatment systems, and even compromise the quality of the treated effluent. The robust design of drum screen equipment makes it well-suited for handling these types of solid debris, enhancing the overall operational reliability of wastewater treatment plants.

3. Fibrous Materials

In addition to organic and inorganic materials, rotary drum screens are particularly effective at capturing fibrous materials such as rags, hair, and other textile debris. These fibrous solids can easily entangle and cause blockages in pumps, piping systems, and other treatment infrastructure, leading to operational inefficiencies and costly maintenance. By systematically sieving out these materials at the beginning of the treatment process, drum screen equipment minimizes the risk of mechanical damage downstream, thereby promoting smoother operations and enhanced longevity of treatment facilities.

4. Sludge and Sediment

Rotary drum screens also play a pivotal role in capturing suspended sludge and sediment that may be present in wastewater. These types of solid debris are often composed of fine particles and colloidal matter that can contribute to the turbidity of effluent water. The ability of drum screens to filter out this type of material not only improves the clarity of the treated water but also aids in meeting regulatory compliance standards. By removing sludge and sediment from the treatment process, facilities can ensure a higher quality effluent suitable for discharge or further treatment.

5. Debris from Industrial Processes

The versatility of rotary drum screens extends to their ability to capture a variety of solid debris emanating from industrial processes. This can include oil and petroleum residues, chemical precipitates, and other by-products that can accumulate during manufacturing or processing activities. Such contaminants may not only degrade the quality of the treated water but can also pose environmental risks if released untreated. By employing drum screen equipment in wastewater pretreatment, industries can effectively manage these types of solid debris, facilitating compliance with environmental regulations and safeguarding natural water bodies.

6. Miscellaneous Debris

Lastly, rotary drum screens can also capture miscellaneous debris, such as cigarette butts, packaging material, and small debris from various sources. These materials can originate from public facilities, industrial plants, and agricultural sites, often finding their way into wastewater systems. The capture of such debris is essential not only for promoting cleaner effluent but also for maintaining a healthy environment by preventing pollution.

3.Differences between internally and externally fed designs

Differences Between Internally and Externally Fed Designs in Rotary Drum Screens

The utility of rotary drum screens in various industry applications cannot be overstated, particularly in the realm of wastewater management. As essential components of wastewater pretreatment equipment, drum screens enhance the efficiency of solids removal, thereby ensuring the sustainability of both the environment and industrial operations. Among the notable features of rotary drum screens are their design configurations, specifically internally and externally fed designs. These configurations significantly influence performance, maintenance, and suitability for different applications.

Design Basics

Internally fed designs involve the introduction of influent materials through the interior of the drum. As the drum rotates, these materials are forced through the screen media, typically located on the drum's outer surface. The rotation of the drum creates a quasi-batch operation, where solids are continuously dewatered and removed, while liquids are filtered through the screen.

In contrast, externally fed designs feature an inflow of waste materials directed onto the exterior surface of the rotating drum. The liquid waste enters the system from the outside, flowing over the drum’s screen media as it turns. Debris is captured and retained on the drum’s surface as the liquid is filtered away. This operational difference is crucial for defining the respective efficiencies and application suitability of each design type.

Performance and Efficiency

The efficiency with which rotary drum screens capture solid debris varies remarkably between internally and externally fed designs. Internally fed designs are noted for their ability to handle larger volumes of solids due to their design allowing for higher influent flow rates. This feature often enhances the overall throughput of the wastewater treatment process.

Conversely, externally fed designs are typically considered more appropriate for systems dealing with lower volumes of solids and varying influent concentrations. By introducing influent on the outside, these designs can provide more consistent filtration rates across different operational conditions. However, externally fed rotary drum screens may struggle with larger solids, which can lead to blockages or reduced cleaning efficiency.

Maintenance and Operational Considerations

Maintenance requirements vary significantly between these two types of rotary drum screens. Internally fed designs generally require more frequent cleaning and monitoring. This is primarily because solids can accumulate within the drum, necessitating routine removal to maintain operational effectiveness. The configuration can also make servicing more complicated, as access to the interior can be challenging.

On the other hand, externally fed designs allow for easier accessibility to the drum surface for maintenance and cleaning. Operators can quickly inspect the exterior and clear any minor blockages with minimal downtime. The outward flow also aids in the self-cleaning effect, as the continuous rotation helps dislodge any debris trapped on the outside of the drum. This design feature can significantly reduce maintenance costs and labor requirements, making it an attractive option for facilities striving to optimize operational efficiency.

Applications and Suitability

The choice between internally and externally fed rotary drum screens often depends on the specific application requirements. For wastewater pretreatment equipment in industries generating high solid loads, such as pulp and paper or food processing, internally fed rotary drum screens may deliver superior performance and reliability. Their design is engineered to handle high solid concentrations, mitigating the need for additional pretreatment processes.

On the other hand, for municipal wastewater treatment facilities or applications requiring a more gentle approach to solid capture, externally fed designs may prove more advantageous. They offer consistent operational performance while minimizing the risk of damage to delicate biodegradable solids.

Furthermore, technological advancements have continuously improved both designs. Innovations in screen mesh materials and automated cleaning systems have enhanced their effectiveness in debris capture, operational durability, and maintenance.

Ultimately, understanding the differences between internally and externally fed designs in rotary drum screens is paramount in selecting the appropriate drum screen equipment for any application. Each design comes with its unique strengths and limitations, necessitating informed decisions based on operational needs and cost-benefit analyses within the overarching context of wastewater treatment. In selecting the right type of rotary drum screen, one not only enhances the efficiency of solid capture but also contributes to the broader goals of environmental sustainability and resource recovery.

4.Common operating and maintenance points

4. Common Operating and Maintenance Points for Rotary Drum Screens

Rotary drum screens are essential components of drum screen equipment, particularly in wastewater pretreatment systems. These devices are designed to efficiently capture solid debris from liquid flows, helping to ensure that downstream processes operate smoothly. To keep these systems functioning optimally, several critical operating and maintenance practices must be adhered to. Understanding these practices can enhance the performance and longevity of rotary drum screens, making them an invaluable asset in wastewater treatment facilities.

1. Regular Inspection and Monitoring

One of the foremost responsibilities in operating a rotary drum screen is conducting regular inspections. Monitoring consists of checking the equipment for any signs of wear and tear or potential malfunctioning. Key components to inspect include the screen mesh, drum bearings, motor, and the drive mechanism. Over time, the screen mesh can accumulate debris that may not be thoroughly rinsed off during operation. This buildup can lead to blockages, reduced flow rates, and less effective capture of solid debris. Inspections should ideally occur daily during operation and be more thorough weekly or monthly, depending on the volume and nature of the wastewater being processed.

2. Maintenance of Screen Mesh

The screen mesh is the primary filtration component of rotary drum screens and must be maintained meticulously. Over time, wear from abrasive particles can degrade the mesh, leading to a decrease in filtration effectiveness. It is advisable to employ ultrasonic cleaning systems that can remove stubborn debris without damaging the screen. In situations where the mesh becomes too damaged, timely replacement is crucial. Having spare mesh readily available can minimize downtime and ensure that operations continue smoothly. Operators should also consider during initial installation whether the mesh size is optimal for the type of debris their system is likely to encounter.

3. Lubrication and Bearing Maintenance

4. Control System Calibration

Modern rotary drum screens often come equipped with sophisticated control systems that monitor performance and facilitate automation. These systems require regular calibration to ensure that operational data is accurate and that the screen is functioning under optimal conditions. Parameters such as flow rate, screen tilt angle, and rotation speed should be routinely assessed and adjusted based on the prevailing operating conditions. Calibration checks should include confirming that sensors and actuators are operating correctly as they play a pivotal role in the performance of drum screen equipment.

Operational clogs and blockages are among the most common issues faced by rotary drum screens. These can occur when the debris exceeds the screen's capture capacity or is particularly adhesive. Implementing a preventive maintenance routine that emphasizes the inclusion of cleaning cycles can be an effective strategy. In scenarios of severe clogging, immediate action is required to prevent damage and maintain flow. Operators should be trained to identify clogging signs early and respond accordingly to minimize downtime and maintain treatment efficiency.

6. Safety Protocols

Ensuring safety during operation and maintenance of rotary drum screens is paramount. Operators should be well-versed in safety protocols, particularly when dealing with energized components or when entering confined spaces for maintenance. Proper personal protective equipment (PPE) should always be used, and lockout/tagout procedures must be followed before performing maintenance tasks. Training sessions should be held regularly to reinforce safety measures and ensure that all staff members are prepared to respond to emergencies effectively.

By prioritizing these common operating and maintenance points, facilities utilizing rotary drum screens can significantly enhance the efficiency of their wastewater pretreatment equipment. The lifecycle of these critical components thrives on consistent attention and care, ultimately leading to smoother operations and less frequent interruptions in service. Proper maintenance not only benefits the rotary drum screen but also upholds the integrity of the entire wastewater treatment process, ensuring effective debris capture and promoting cleaner effluent discharge.

5.Flow rate parameters to confirm before selection

5. Flow Rate Parameters to Confirm Before Selection

When it comes to selecting a rotary drum screen for wastewater pretreatment, understanding flow rate parameters is crucial for ensuring optimal performance. A rotary drum screen serves as an efficient solution for capturing solid debris and contaminants in various wastewater applications. The selection process involves evaluating several flow rate parameters to ensure that the drum screen equipment operates effectively and meets the specific needs of the facility. Below, we delve into the key flow rate parameters that should be assessed prior to making a selection.

1. Design Flow Rate

The design flow rate of a rotary drum screen refers to the maximum volume of wastewater that the equipment can handle during its operation. This parameter is typically measured in gallons per minute (GPM) or cubic meters per hour (m³/h). It’s essential to determine the typical and peak flow rates of the system you will be treating. Understanding these parameters helps to ensure that the chosen drum screen equipment can effectively manage the incoming volume without risking overflow or reducing efficiency. A rotary drum screen that operates below its design flow rate may not capture all solid debris, while one that exceeds its capacity can lead to clogs and operational downtimes.

2. Recommended Flow Velocity

In addition to the design flow rate, the recommended flow velocity is another critical parameter for rotary drum screens. This velocity is the speed at which wastewater should pass through the screen holes. A proper flow velocity ensures that solids do not settle in the drum and that screenings remain suspended for effective removal. If the velocity is too low, there may be inadequate force to push debris through, leading to clogging. Conversely, too high a velocity can lead to excessive wear and tear on the screen material. When evaluating drum screen equipment, it is vital to consider the manufacturer’s guidelines for optimal flow velocity to achieve effective pretreatment.

3. Screening Capacity

Screening capacity is the amount of solid material the rotary drum screen can effectively remove over a specified period. This capacity can influence operational efficiency significantly; thus, understanding the nature and composition of the solid waste in the effluent is crucial. For example, if a screening system is required to process high levels of coarse debris or fibrous material, the screening capacity needs to be adjusted accordingly. Selecting drum screen equipment that does not meet the expected screening capacity can result in overloading and operational compromise.

4. Solids Loading Rate

Solids loading rate is a critical parameter that quantifies the concentration of solids in the incoming wastewater per unit of time. This metric is particularly important for wastewater pretreatment equipment as it affects the efficiency of the rotary drum screen. A higher solids loading rate may necessitate more frequent maintenance and cleaning cycles, leading to increased operational costs. Conversely, understanding the solids loading rate can help in identifying the appropriate size and specifications of the drum screen equipment needed to accommodate the volume and type of solids present.

5. Hydraulic Retention Time

Hydraulic retention time (HRT) is the duration that wastewater spends in the rotary drum screen. This factor affects the effectiveness of solid removal as well as the overall treatment process. Longer HRT can enhance solid separation and improve screening effectiveness. However, an excessively long HRT may lead to reduced flow rates and might create unnecessary back pressure in the system. Balancing the hydraulic retention time with the required treatment level is essential for maximizing the effectiveness of wastewater pretreatment equipment.

When evaluating a rotary drum screen for capturing solid debris in wastewater applications, considering various flow rate parameters becomes paramount. Factors such as design flow rate, recommended flow velocity, screening capacity, solids loading rate, and hydraulic retention time should be thoroughly analyzed to ensure efficient and effective operation. This comprehensive approach not only facilitates the selection of suitable drum screen equipment but also enhances the overall efficiency of wastewater pretreatment processes. Properly assessing these parameters ultimately leads to optimal performance, reduced operational issues, and improved treatment outcomes. As the demand for efficient and reliable wastewater management continues to rise, understanding these flow rate parameters becomes increasingly crucial for any facility.

Conclusion

In conclusion, after two decades of dedicated experience in the industry, we’ve witnessed firsthand the transformative impact of rotary drum screens in efficiently capturing solid debris. These innovative systems not only enhance operational efficiency but also significantly reduce environmental impact by ensuring cleaner water and streamlined waste management processes. As we continue to refine our technologies and share our expertise, we remain committed to providing solutions that meet the evolving needs of our clients. By choosing rotary drum screens, businesses can trust that they are investing in a reliable and effective method of maintaining both productivity and sustainability. Join us in embracing a cleaner, more efficient future as we harness the power of innovation and experience to tackle today’s challenges in solid waste management.
