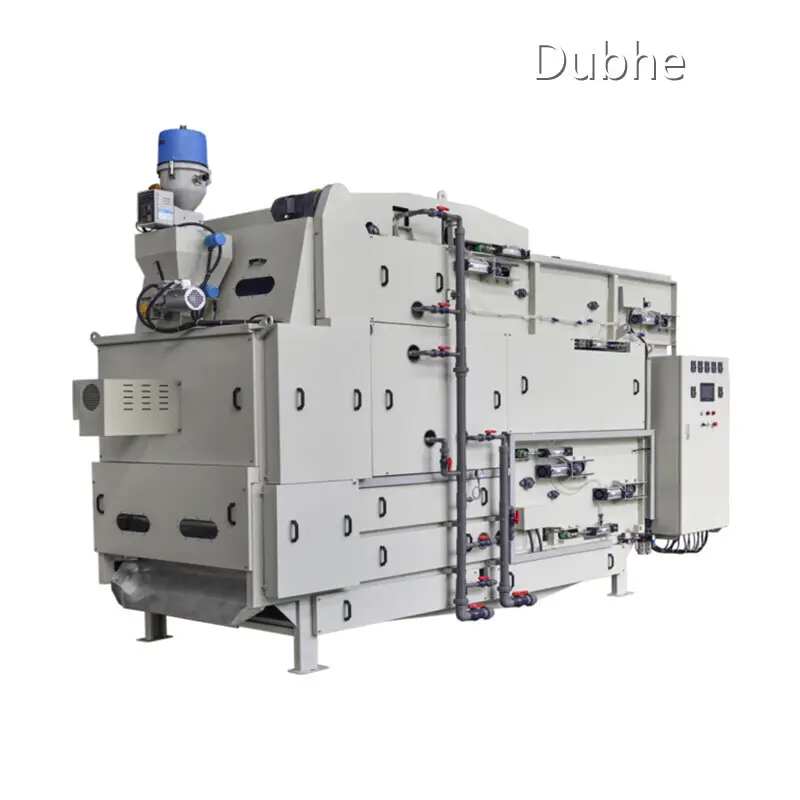

Technical Parameter
| Spec. Model | DUBHE-DDS1000 | DUBHE-DDS1500 | DUBHE-DDS2000 | DUBHE-DDS2500 | DUBHE-DDS3000 | |
| Belt Width (mm) | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Treating Capacity (m³/hr) | 5.0~18.0 | 10~37 | 22~59 | 28~72 | 35~90 | |
| Dried Sludge D.S (kg/hr) | 76~240 | 152~465 | 240~800 | 310~1000 | 380~1250 | |
| Water content (%) | 55~70 | 55~70 | 55~70 | 55~70 | 55~70 | |
| Power Consumption (HP) | Filter cloth drive (variable frequency speed regulation) | 0.75 | 1.5 | 2.2 | 2.2 | 3.7 |
| Belt concentrator | 0.4 | 0.75 | 1.1 | 1.1 | 1.5 | |
| Screw conveyor | 0.25*2 | 0.37*2 | 0.37*2 | 0.55*2 | 0.55*2 | |
| Mixing screw machine | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | |
| Precision feeder | 0.18 | 0.18 | 0.25 | 0.25 | 0.37 | |
| Conditioning mixer | 0.37 | 0.55 | 0.75 | 0.75 | 1.5 | |
| Total drainage tray under filtrate | YES | NONE | NONE | NONE | NONE | |
| External Dimension (mm) | Length | 5330 | 6240 | 6710 | 7120 | 7520 |
| Width | 1550 | 2100 | 2640 | 3150 | 3650 | |
| High | 2680 | 2940 | 3240 | 3120 | 3350 | |
| Base dimensions (excluding conditioning tank) | 3335×1800 | 3955×2320 | 4245×2820 | 4540×3320 | 5050×3900 | |
| Reference Weight (kg) | 3150 | 5600 | 6700 | 7950 | 9800 | |
CAD

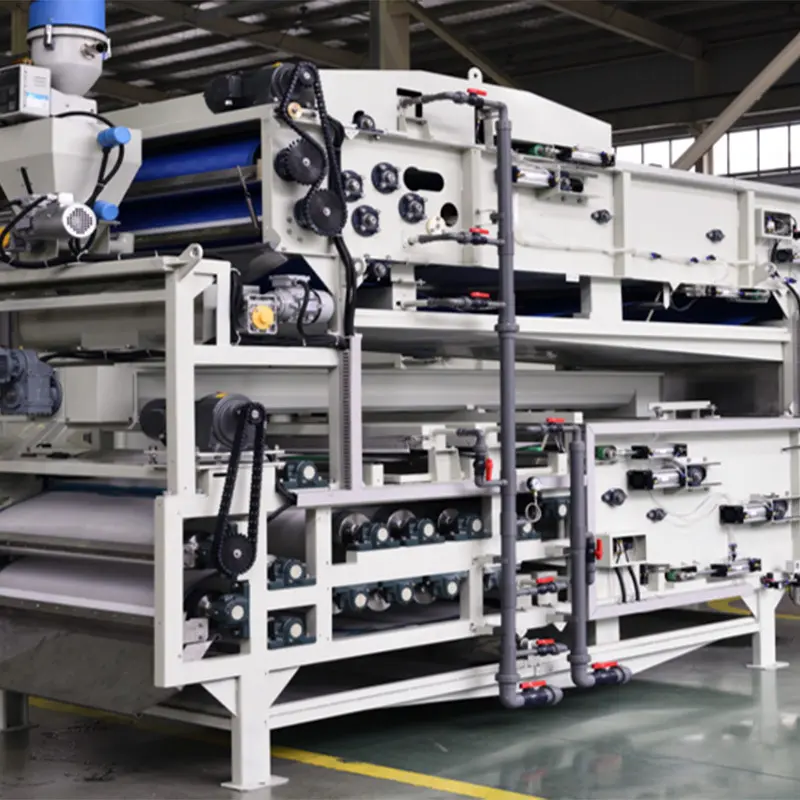

Design advantages
● The concentration section has been changed to an integrated concentration and pressing unit, which greatly saves space and the front-end sludge dewatering equipment. After this stage, the sewage can be dewatered to around 85%.
● The rakes in the concentration section feature a new design that causes the sludge to tumble during operation, allowing more free water to be filtered out through the filter cloth. Refer to the figure below.
The surface of the sludge rake features an arc-shaped design, which more effectively facilitates the tumbling of the sludge.
● The mixing of lime, iron salt, and sludge is carried out using an integrated spiral mixing and crushing device, as shown in the figure below.
As shown in the diagram, this component consists of three truncated double screws primarily responsible for conveying and mixing. The section between the two screw segments contains crushing blades (see right figure), which break down the mixture of sludge and lime, resulting in more thorough blending and reduced agglomeration.
● Lime dosing is carried out using a precision feeder, which controls the feeding screw through a frequency converter. The addition amount is adjusted according to actual conditions to ensure an appropriate mixing ratio and controllable moisture content in the discharged sludge cake.
● The equipment is pre-fitted with an air blow connection, which is positioned behind the cleaning water pipe. After the filter cloth is cleaned, the air blow function removes residual moisture, enhancing the cloth's permeability and resulting in lower moisture content after subsequent pressing.
● The roller arrangement follows a scientific design with progressively increasing pressure. The pressing force intensifies towards the later stages, as illustrated in the diagram below.
ACCESSORIES
Factory View
Company Advantages
· The production of DUBHE belt filter press for wastewater treatment follows the international standards and green norms.
· Compared with similar products, this product has superior performance and long service life.
· Shanghai Dubhe Environmental Protection Technology Co.,Ltd adheres to the principle of serving customers and satisfying customers.
Company Features
· DUBHE has its own characteristics in the belt filter press for wastewater treatment industry.
· Our factory has been equipped with a wide range of advanced production facilities. This gives us a powerful capacity that automates tasks, streamlines workflow, and helps us quickly define and validate the form, fit, and function of our product.
· Dubhe’s vision is to be a famous brand all over the world. Inquiry!
Application of the Product
Various in function and wide in application, the belt filter press for wastewater treatment can be used in many industries and fields.
While providing quality products, Dubhe is dedicated to providing personalized solutions for customers according to their needs and actual situations.
