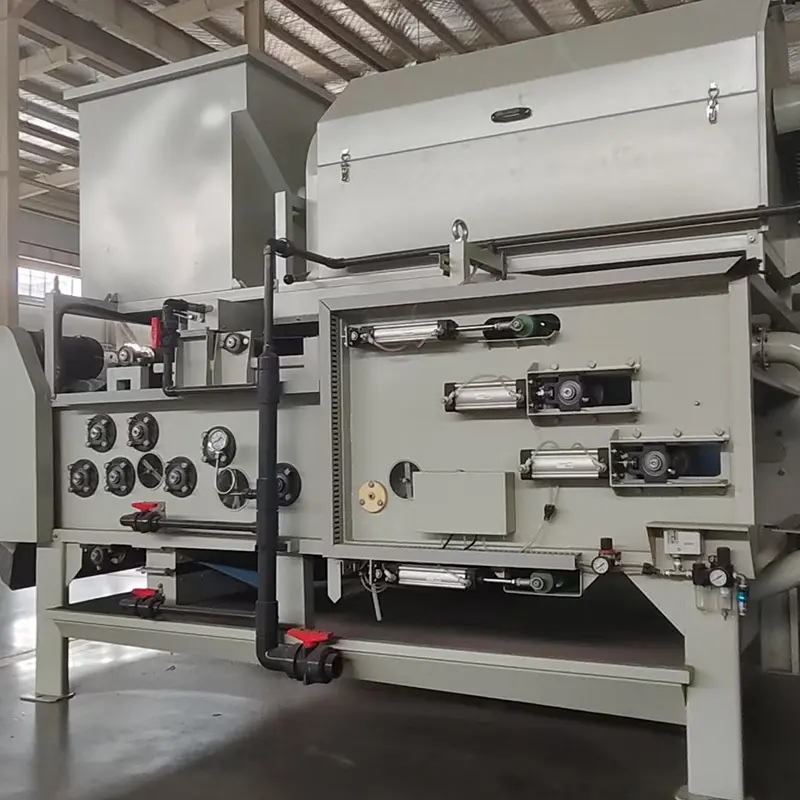

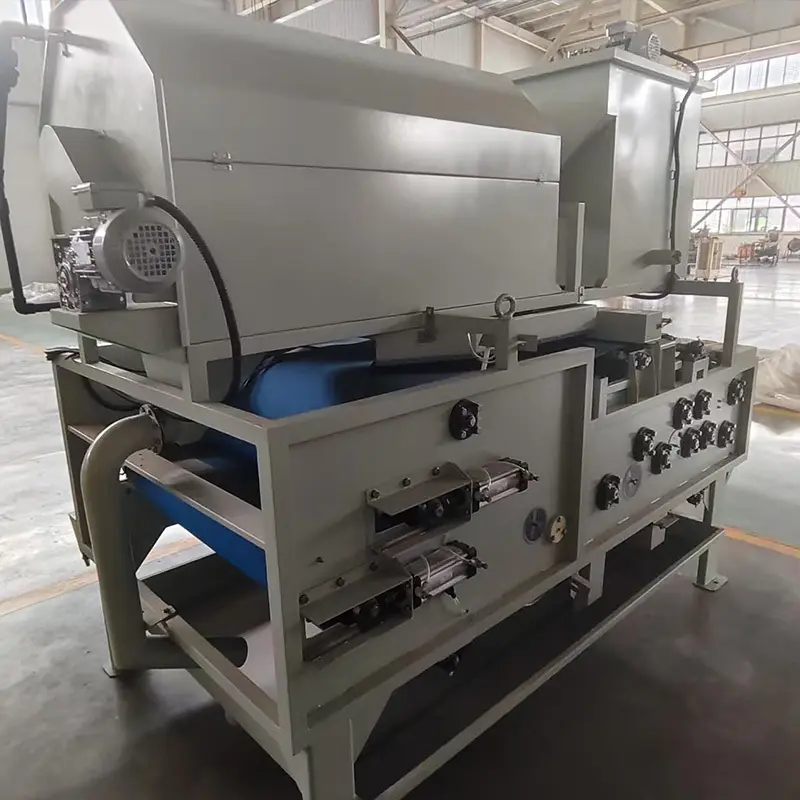

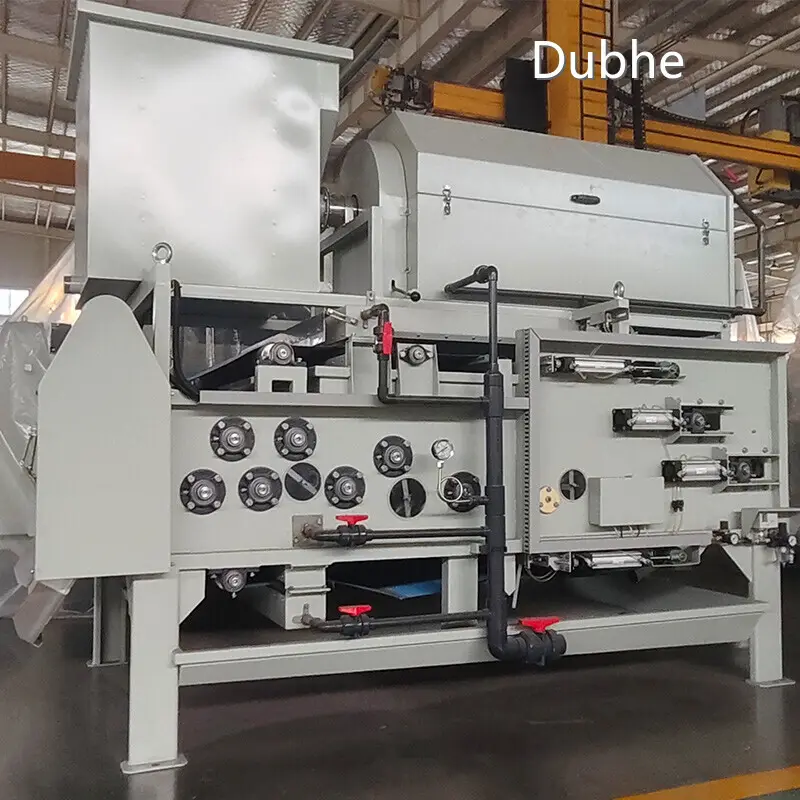

Product details of the drum thickener sludge

Product Information

The production of DUBHE drum thickener sludge is resource-efficient and causes less pollution to the environment. After careful tests, the product is proven to be good in various aspects, such as performance, durability, usability, and so on. DUBHE produce drum thickener sludge with exceptional quality.

Technical Data & External Dimensions of Belt Filter Press

Spec. Model			HTB-500	HTB-750	HTB-1000	HTB-1250	HTB-1500	HTB-1500L	HTB-1750	HTB-2000	HTB-2500
Belt Width (mm)			500	750	1000	1250	1500	1500	1750	2000	2500
Treating Capacity (m³/hr)Inlet Consistency (S.S. 15~2.5%)			2.8~5.7	4.3-8.2	6.2~11.5	7.2~13.7	9.0-17.6	11.4-22.6	14.2-26.8	17.1~36.0	26.5~56.0
Dried Sludge (D.S) (kg/hr)			45-82	73-125	98-175	113-206	143-240	180-320	225-385	270-520	363-700
Water Content Rate (%)			63-83	63-83	63-83	63-83	63-83	63-83	63-83	63-83	63-83
Power Consumption (HP)		Driving Motor (Speed Variable)	1/2	1/2	1/2	1/2	1	1	1	1	2
		Flocculator Tank Motor	1/4	1/4	1/2	1/2	1/2	1	1	1	1
		Drum Thickener Motor	1/4	1/4	1/2	1/2	1/2	1	1	1	1
Lower Collecting Tray for Pressed Filtrate			Yes	Yes	Yes	Yes	Yes	Yes	None	None	None
External Dimension(mm)(Reference)		(L)	2600	2600	2600	2600	2800	3200	3450	3450	3550
		(W)	1050	1300	1550	1800	2100	2150	2350	2600	3100
		(H)	2150	2300	2300	2300	2400	2400	2550	2550	2650
Base Dimension L1×W1 (mm)			2100×836	2100×1086	2100×1336	2100×1986	2100×1836	2450×1848	2450X2098	2680×2370	2695×2886
Peference Weight (kgs)			950	1120	1360	1620	2050	2400	2650	3250	3850

CAD

B-1 (14)

B-2 (18)

Features

● Integrated rotary drum thickening and dewatering treatment processes

● Wide range of normal applications

● The best performance is found when the inlet consistency is 1.5-2.5%.

● Installation is easy due to the compact structure and normal sizes.

● Automatic, continuous, simple, stable and safe operation

● Operation is environmentally friendly due to the low energy consumption and low noise levels.

● Easy maintenance ensures the longevity of operation.

● The patented flocculation system reduces the polymer consumption.

● 7 to 9 segmented press rollers support different treatment capacities with the best treatment effect.

● The pneumatic adjustable tension achieves an ideal effect in compliance with treatment processes.

● A galvanized steel rack can be customized when the belt width reaches more than 1500mm.

ACCESSORIES

C-4 (2)

Filter cloth deviation correction device: Automatically and continuously detects and corrects filter cloth misalignment to ensure smooth machine operation and extend the service life of the filter cloth.

C-5

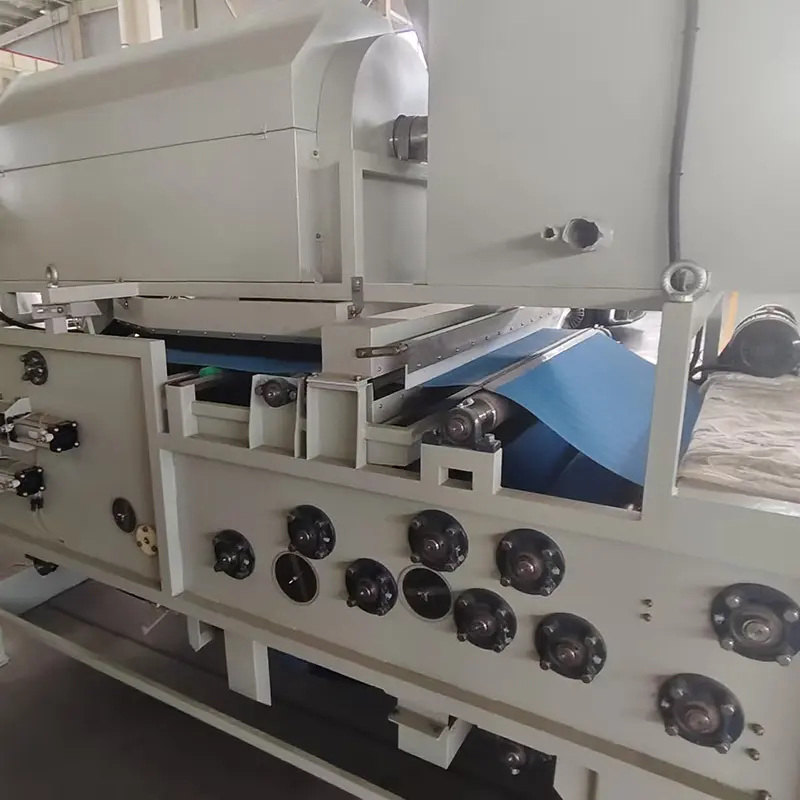

Sludge distributor: Evenly spreads the concentrated sludge on the upper filter cloth to ensure uniform pressure distribution during dewatering, improving dehydration efficiency and extending the service life of the filter cloth.

C-6

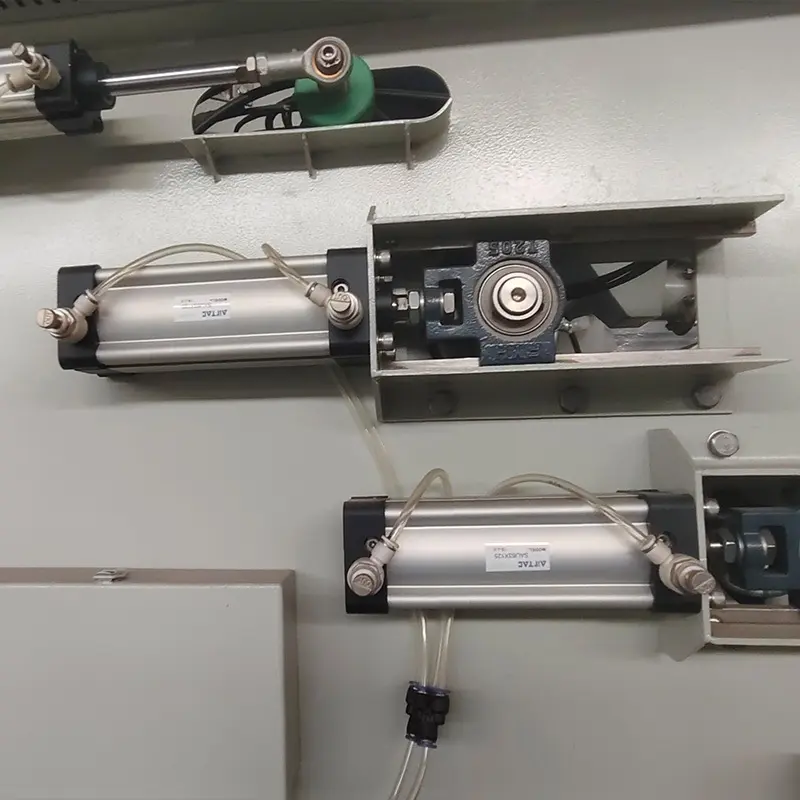

Cylinder Three-Point Tensioning Device: Utilizes pneumatic cylinder tension to tighten the filter cloth, ensuring stable operation within a defined range with no leakage and high safety.

C-2 (5)

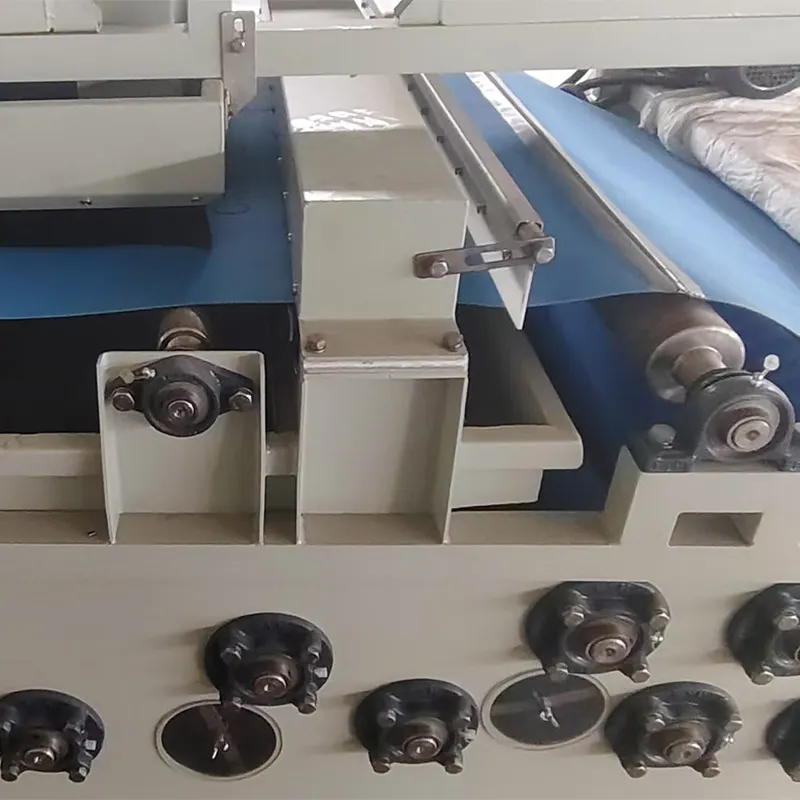

Press roller: Made of SUS304 material, reinforced with TIG welding, and precision-machined for a robust structure that resists breakage.

C-1 (7)

Synchronous pulley: The drive roller in the pressing section adopts a synchronous gear design, which ensures reliable operation, low failure rate, and easy maintenance, thereby enhancing operational stability.

C-3 (7)

Waterproof ring: Installed on the inner side of the bearing, it prevents water from splashing into the bearing during the operation of the dewatering machine, thereby extending the bearing's service life.

C-7

Main Drive: Equipped with internationally renowned NORD gear reducers to ensure stable operation, long service life, and low maintenance costs. Alternatively, SEV brand gear reducers can be selected based on requirements.

C-8

Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.

C-9

Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.

Customer cases

C-6 (3)

C-7 (3)

C-5 (3)

C-4 (3)

C-3 (8)

C-2 (6)

C-1 (8)

C-8 (2)
