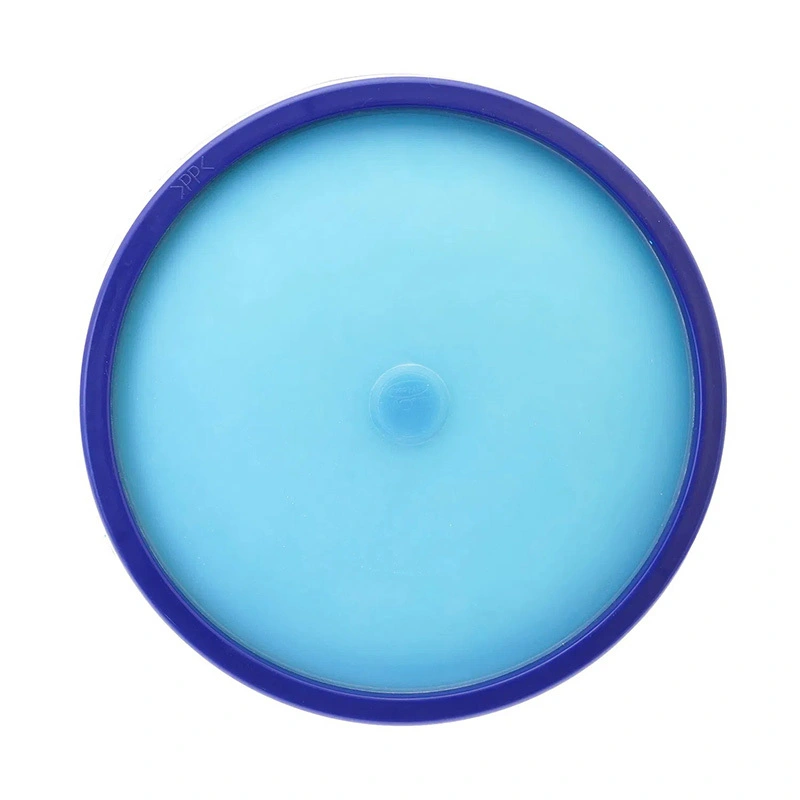

Silicone Sewage Treatment Plant Aeration Disc for Wastewater Treatment
DUBHE 215/270/350 (7/9/12") Disc Diffuser systems combine engineering excellence, superior component quality, and a technically advanced product concept, Unibody plastic construction means the diffuser is a single piece. Because of unique developments related to product design and production automation you can purchase this high quality diffuser for an economical price.
5.0
Brand name:
DUBHE
Hole Size:
1mm or 2mm
Size:
7/9/12inch
Minimum order quantity:
1 Piece
Material:
Silicone Membrane
Service Life:
≥2years
Original:
China
Application:
Industrial, agriculture, hospital and other
Packing:
Sturdy cardboard box
Delivery time:
3-25days
Transaction mode:
Various methods
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
DUBHE 215/270/350 (7/9/12") Disc Diffuser systems combine engineering excellence, superior component quality,and a technically advanced product concept. Unibody plastic construction means the diffuser is a single piece. Because of unique developments related to product design and production automation you can purchase this high quality diffuser for an economical price. You get the same high quality membrane that is known for its durability, The plastic material is made from the highest-quality, sorted recycled polypropylene resin. When the time comes to replace the diffuser, simply unscrew the old one and screw a new one in. Replacement is clean and quick, and because it is made of recycled plastic, it is also environmentally friendly. Oxygen transfer and head loss performance are equal to the current product line, because we have not changed the membrane or the orifice diameter of diffuser
Attachment: DUBHE 215/270/350 aeration ring structure schematic diagram
| Description | Material | |
| 1 | Membrane | Silicone |
| 2 | Fixed Ring | PP |
| 3 | φ3/4’’thread connection | |
| 4 | Plate Base | PP |
Technical Parameters
| MODEL | D215 (7inch) | D270 (9inch) | D350 (12inch) |
| Active Surface Area (m²) | 0.0225 | 0.0375 | 0.065 |
| Size (inch) | 7 (215mm) | 9 (251mm) | 12 (330mm) |
| Design Flow (m³/hr) | 0.5-2.5 | 2.5-5.0 | 4.0-8.3 |
| Membrane Thickness (mm) | 2 | 2 | 2 |
| Hole Size (mm) | 1mm or 2mm | 1mm or 2mm | 1mm or 2mm |
| Slit Quantity | 3900 | 6600 | 10155 |
| SOTE (%) (6m Water Depth) | 40.9-47 | 33.4-37 | 32.2-36.4 |
| Max Drag Loss(Pa) | 21 | 36 | 33 |
| Service Life (year) | ≥2 | ≥2 | ≥2 |
Drawings & Dimensions
C-1 (5)
C-2 (3)
C-3 (5)
Application Cases
COMPANY STRENGTH
In a wastewater treatment plant, the Fine Bubble Disc Diffuser is installed in the aeration tank, where it releases a constant stream of small air bubbles. These bubbles rise to the surface, creating turbulence and increasing the contact between air and water. This allows for the transfer of oxygen from the air into the water, promoting the growth of beneficial bacteria that break down organic matter.
Applications
COMPANY STRENGTH
In a wastewater treatment plant, the Fine Bubble Disc Diffuser is installed in the aeration tank, where it releases a constant stream of small air bubbles. These bubbles rise to the surface, creating turbulence and increasing the contact between air and water. This allows for the transfer of oxygen from the air into the water, promoting the growth of beneficial bacteria that break down organic matter.
COMPANY STRENGTH
In an aquaculture facility, the Fine Bubble Disc Diffuser is used to provide oxygen to fish and other aquatic animals. The small bubbles created by the diffuser help to increase the dissolved oxygen levels in the water, creating a healthier environment for the aquatic life to thrive in.
b
In industrial processes, the Fine Bubble Disc Diffuser is used to aerate and mix liquids, such as in fermentation tanks or chemical reactors. It helps to improve the efficiency of the process by providing a constant supply of oxygen and promoting mixing and circulation.
Overall, the Fine Bubble Disc Diffuser is a versatile and essential product that plays a crucial role in various applications. Its high-quality design and efficient performance make it a popular choice for aeration systems around the world.
FAQ
1
Q: What is the Brand Name of the product?
A: DUBHE
2
Q: What is the main purpose of the DUBHE Fine Bubble Diffuser?
A: DUBHE Fine Bubble Diffuser is mainly used for efficient aeration and mixing of liquids.
3
Q: What material is the DUBHE Fine Bubble Diffuser made of?
A: The DUBHE Fine Bubble Diffuser is made of high-grade silicone material.
