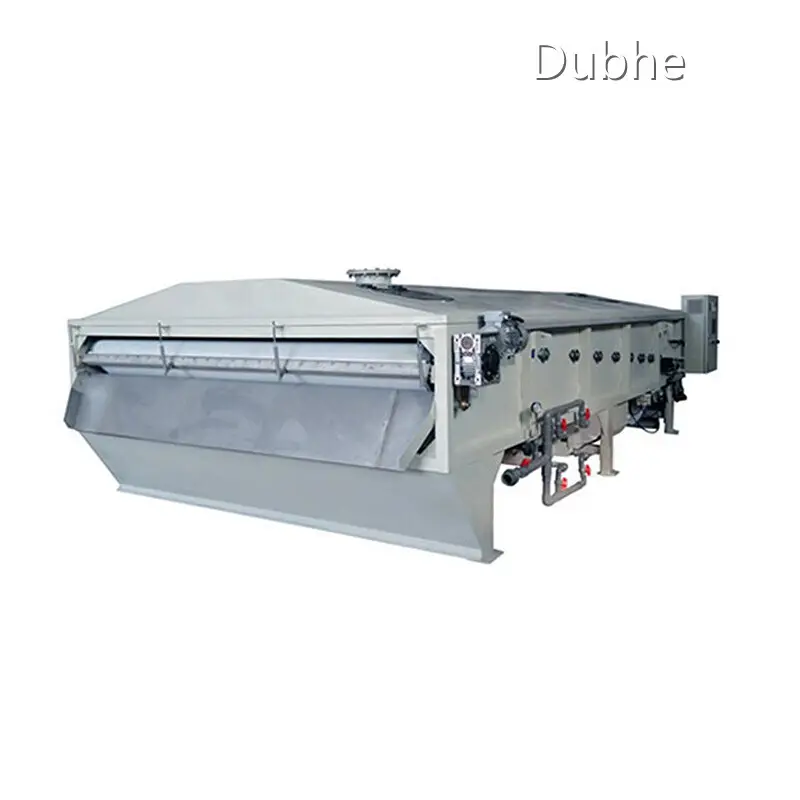

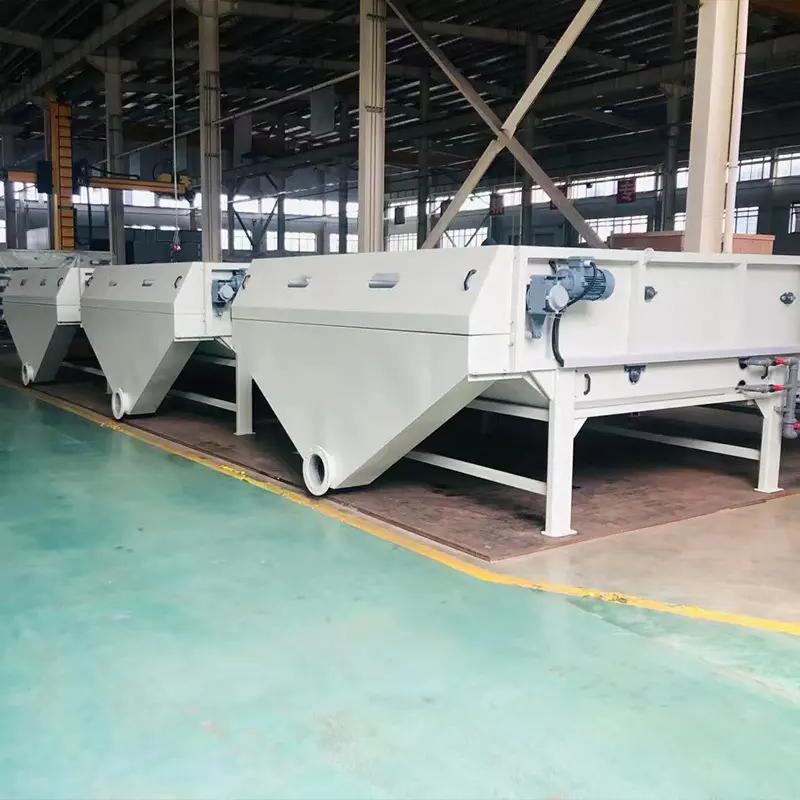

Product details of the belt filter press
Product Introduction
DUBHE belt filter press comes in various design styles, perfectly blending the functionality and aesthetics. This product exceeds industry standards for performance, durability and availability. The assurance of belt filter press quality has helped DUBHE attracted more and more customers.
Technical Data & External Dimensions
| Model | DHNS-5 | DHNS-10 | DHNS-20 | DHNS-30 | DHNS-40 | DHNS-50 | DHNS-60 | DHNS-80 | DHNS-100 | ||
| Machine Frame Material | Standard Option | Stainless steel (SUS304) | |||||||||
| (SS400/SS41) (SU5316) (Other special materials) | |||||||||||
| Filter Opening (micron) (mm) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | ||
|
Treating Capacity (m³/hr) Inlet Consistency (S.S. 0.4~2.0%) |
2~6 | 6~12 | 11~23.5 | 22~32.5 | 33~42.5 | 41~52 | 45~63 | 61~83 | 80~105 | ||
| Dried Sludge D.S (kg/hr) | 40~70 | 90~120 | 150~220 | 240~310 | 260~420 | 290~510 | 360~600 | 540~900 | 620~1250 | ||
| Sludge Outlet Consistency (%) | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | ||
| Power Consumption (Hp) | Standard Accessories | Driving Motor (Frequency control) | ½ | ½ | ¾ | 1 | 1 | 1 | 1×2 | 1×2 | 1×2 |
| Flocculator Tank Motor | ¼ | ¼ | ¼ | ¾ | ¾ | ¾ | ¾ | ¾ | 1 | ||
| Option Accessories | Washing Pump | 1 | 1 | 1 | 1 | 1½ | 1½ | 2 | 2 | 2 | |
| Lower Collecting Tray for Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| External Dimensions (mm) (Reference) | L1 | 2075 | 2085 | 2525 | 2525 | 2545 | 3015 | 2525 | 2545 | 3015 | |
| L | 2708 | 2808 | 3344 | 3448 | 5900 | 4048 | 3498 | 3648 | 4148 | ||
| W | 938 | 1038 | 1058 | 1078 | 3700 | 1128 | 1800 | 1900 | 1900 | ||
| H | 1206 | 1340 | 1485 | 1535 | 2400 | 1845 | 1535 | 1595 | 1845 | ||
| Reference Weight (kgs) | 300 | 450 | 700 | 1050 | 2700 | 1320 | 1450 | 2000 | 2560 | ||
Remark: Treating capacity and the water content rate depend on the slurry feature.
Please ask for the actual installation dimension before ordering.
Belt Filter Thickeners
Technical Data & External Dimenisons
| Model | DHBT-1000 | DHBT-1500 | DHBT-2000 | DHBT-2500 | DHBT-3000 | |||
| Machine Frame Material | Standard | Stainless steel (SUS304) | ||||||
| Option | (SS400/SS41) (SU5316) (Other special materials) | |||||||
| Filter Belt Width (mm) | 1000 | 1500 | 2000 | 2500 | 3000 | |||
|
Treating Capacity (m³/hr) Inlet Consistency (S.S.0.4~2.0%) |
30~45 | 45~65 | 65~85 | 85~105 | 95~125 | |||
| Dried Sludge D.S (kg/hr) | 120~360 | 180~585 | 260~808 | 320~1050 | 380~1313 | |||
| Sludge Outlet Consistency (%) | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | |||
| Power Consumption (Hp) | Standard Accessories | Driving Motor (Frequency control) | ¾ | ¾ | 1½ | 1½ | 2 | |
| Flocculator Tank Motor | ¾ | ¾ | ¾ | ¾ | ¾ | |||
| Option Accessories | Washing Pump | 2 | 2 | 2 | 3 | 3 | ||
| Lower Collecting Tray for Pressed Filtrate | None | None | None | None | None | |||
| External Dimensions (mm)(Reference) | L1 | 4200 | 4300 | 4700 | 4700 | 4800 | ||
| L | 5100 | 5300 | 5800 | 5850 | 5900 | |||
| W | 1550 | 2050 | 2550 | 3200 | 3700 | |||
| H | 2100 | 2250 | 2400 | 2400 | 2400 | |||
| Reference Weight (kgs) | 1250 | 1500 | 1850 | 2250 | 2700 | |||
Remark: Treating capacity and the water content rate depend on the slurry feature.
Please ask for the actual installation dimension before ordering.
Drawings & Dimensions
The DHNS / DHBT series thickeners utilize either rotary drum thickening or filter belt gravity thickening processes to achieve high solid content treatment. It saves land, building and labor costs due to its simple structure, low flocculant requirement and fully automatic operation.
Peripheral Equipment Configuration Reference Diagram
