Belt Filter Press Solid Liquid Separation Machine Wholesale - DUBHE

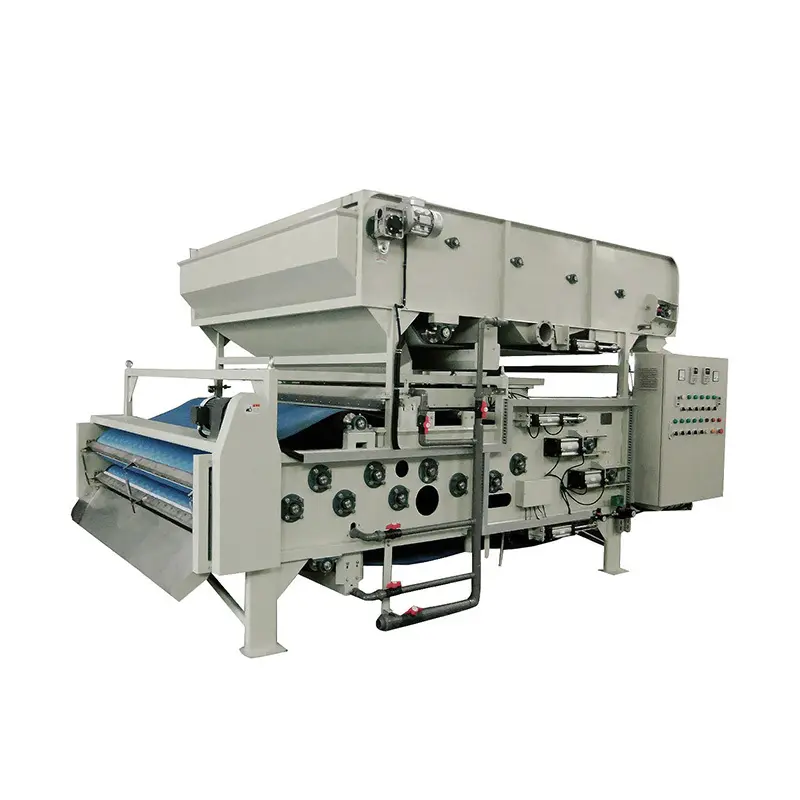

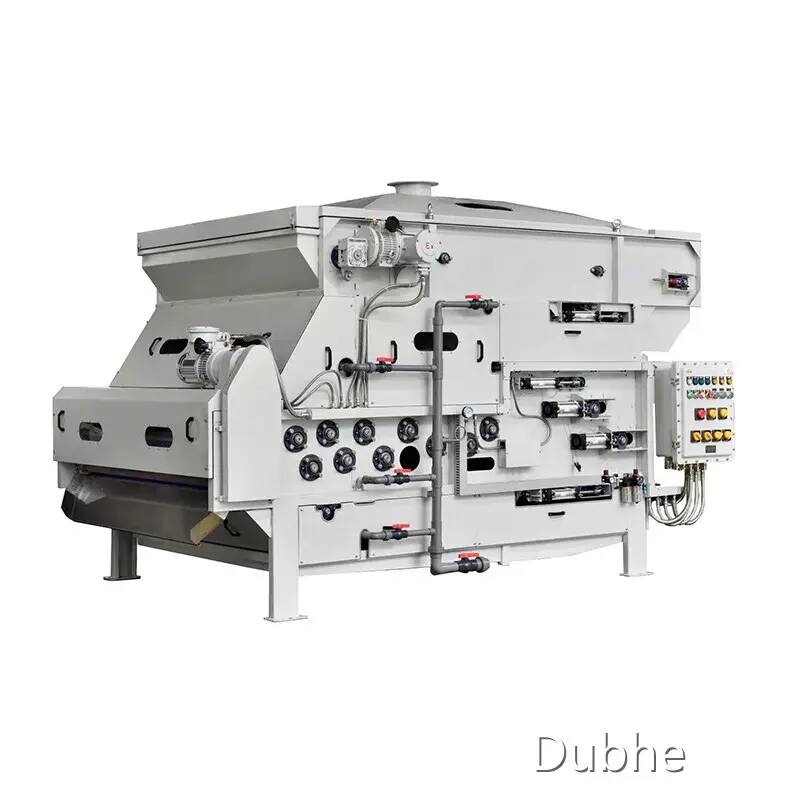

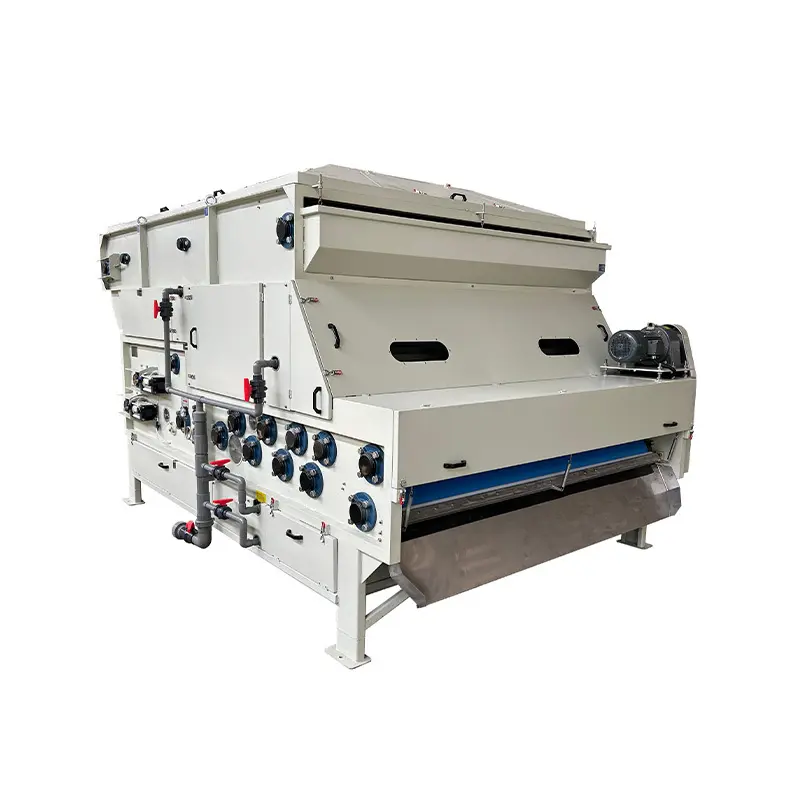

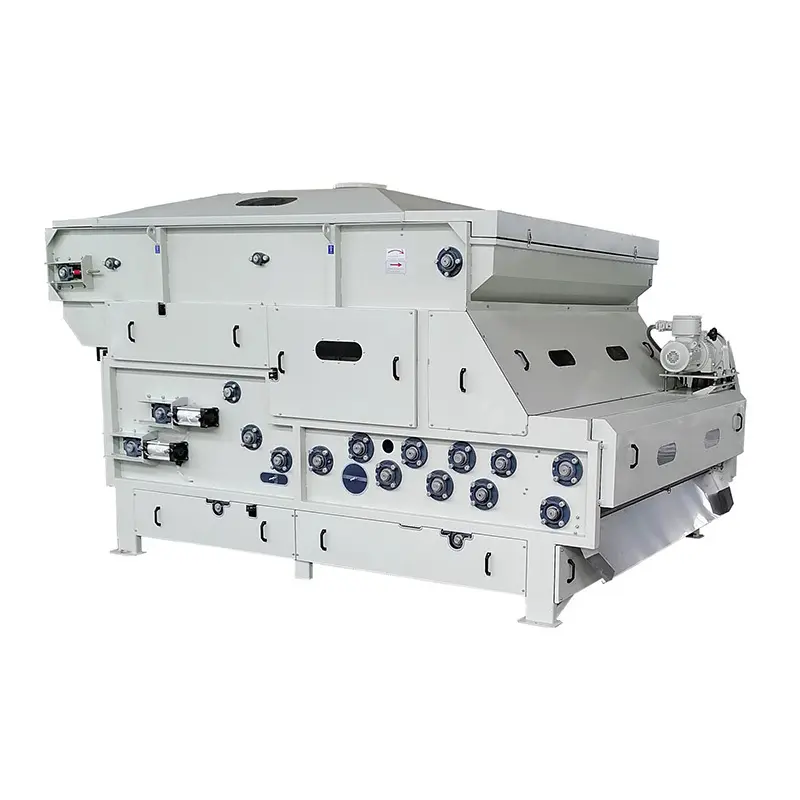

Product details of the belt filter press

Quick Detail

Special sizes can be customized in Shanghai Dubhe Environmental Protection Technology Co.,Ltd. The quality of the product has been effectively improving. It has obtained fame and reputation in the market.

Product Introduction

We insist on regulating the production process of the products in accordance with standards, so as to promote the belt filter press has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.

Technical Data & External Dimensions of Belt Filter Press

Spec.Model		HTB3-750L	HTB3-1000L	HTB3-1250L	HTB3-1500L	HTB3-1750	HTB3-2000	HTB3-2500
Belt Width (mm)		750	1000	1250	1500	1750	2000	2500
Low Consistency	Treating Capacity (m³/hr)(S.S.04~0.8%) Inlet Consistency	9.9~18.0	14.2~25.0	22.0~32.0	23.8~40.0	28.5~50.0	33.0~60.0	40.0~81.0
	D.S(kg/hr) Dried Sludge	42~99	60~132	84~186	100~215	120~250	140~310	165~450
Middle Consistency	Treating Capacity（m³/hr)(S.S. 08%~1.5%)Inlet Consistency	8.8~11.5	11.8~17.0	16.5~23.0	19.0~27.5	23.0~35.0	29.0~40.0	35.0~55.0
	D.S(kg/hr)Dried Sludge	76~146	100~195	140~270	160~310	196~380	240~520	310~670
Water Content Rate		65~84	65~84	65~84	65~84	65~84	65~84	65~84
Power Consumption (HP)	Driving Motor (Speed  Variable)	1/2	1/2	1/2	1	1	1	2
	Flocculator Tank Motor	1/4	1/4	1/2	1/2	1/2	3/4	1
	Belt Thickener Motor	1/2	1/2	1/2	1/2	1	1	1
Lower Collecting Tray for Pressed Filtrate for Pressed Filtrate		None	None	None	None	None	None	None
Extemal Dimension(mm)(Reference)	(L)	3880	3980	4430	4430	4730	4730	5030
	(W)	1480	1680	1930	2150	2335	2595	3145
	(H)	2400	2400	2600	2600	2800	2900	2900
Base Dimension L1×H1 (mm)		3150×2100	3150×2100	3580×2200	3580×2200	3910×2330	3960×2430	3960X2630
Base Dimension L2×W1 (mm)		2100×1086	2100×1336	2450×1610	2450×1860	2680×2126	2680×2376	2680X2876
Reference Weight (kgs)		1600	1830	2050	2380	2800	4300	5650

CAD

B-3 (14)

B-2 (19)

Features

● Integrated gravity belt thickening and dewatering treatment process

● Wide range of normal applications

● The best performance is found when the inlet consistency is 0.4-1.5%.

● Installation is easy due to the compact structure and normal size.

● Automatic, continuous, simple, stable and safe operation

● Environmentally friendly operation is achieved due to the low energy consumption and low noise levels.

● Easy maintenance ensures a long term operation.

● The patented flocculation system reduces the polymer consumption.

● 7 to 9 segmented press rollers support different treatment capacities with the best treatment effect.

● The pneumatic adjustable tension achieves an ideal effect in full compliance with the treatment process.

● A galvanized steel rack can be customized when the belt width reaches more than 1500mm.

ACCESSORIES

C-4 (2)

Filter cloth deviation correction device: Automatically and continuously detects and corrects filter cloth misalignment to ensure smooth machine operation and extend the service life of the filter cloth.

C-5

Sludge distributor: Evenly spreads the concentrated sludge on the upper filter cloth to ensure uniform pressure distribution during dewatering, improving dehydration efficiency and extending the service life of the filter cloth.

C-6

Cylinder Three-Point Tensioning Device: Utilizes pneumatic cylinder tension to tighten the filter cloth, ensuring stable operation within a defined range with no leakage and high safety.

C-2 (5)

Press roller: Made of SUS304 material, reinforced with TIG welding, and precision-machined for a robust structure that resists breakage.

C-1 (7)

Synchronous pulley: The drive roller in the pressing section adopts a synchronous gear design, which ensures reliable operation, low failure rate, and easy maintenance, thereby enhancing operational stability.

C-3 (7)

Waterproof ring: Installed on the inner side of the bearing, it prevents water from splashing into the bearing during the operation of the dewatering machine, thereby extending the bearing's service life.

C-7

Main Drive: Equipped with internationally renowned NORD gear reducers to ensure stable operation, long service life, and low maintenance costs. Alternatively, SEV brand gear reducers can be selected based on requirements.

C-8

Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.

C-9

Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.

Customer cases

D-8 (2)

D-7 (2)

D-6 (2)

D-5 (2)

D-4 (2)

D-3 (3)

D-2 (3)

D-1 (3)
