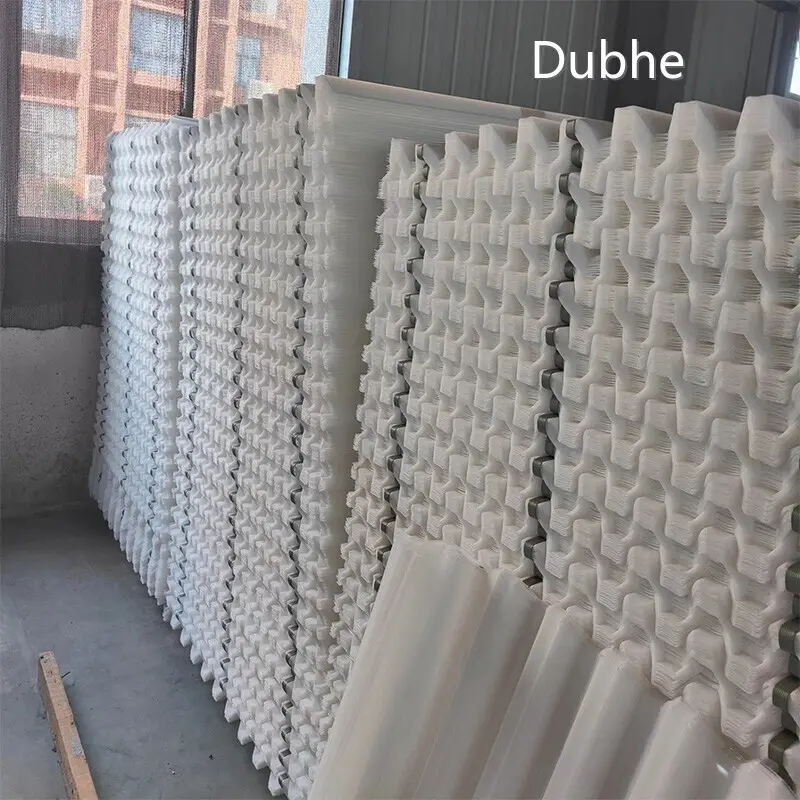

Inclined Plate Settler by DUBHE
Technical Data: Slant Plate Filler
| Item | Hexagonal Honeycomb Inclined Tube Packing | |||||
| Material | PP | FRP fiberglass reinforced plastic | ||||
| Specification (mm) | φ35 | φ50 | φ80 | φ35 | φ50 | φ80 |
| Conventional piece/m² | 40 | 30 | 20 | 40 | 30 | 20 |
| Commonly used (mm) | 0.40 | 0.45 | 0.60 | 0.30 | 0.50 | 0.70 |
| Reference (kg/m²) | 18 | 15 | 15 | 41 | 31 | 31 |
| Single size (mm) | 1000×1000×δ | 1000× 1000×δ | ||||
| Molding size | 1000×1000×866 | |||||
| Application | water supply, gray water, wastewater | |||||
| Color | White | Customized | ||||
| Molding method | Soldering iron | Bonding gluing | ||||
| Product Installation | Hot seaming on site | On-site gluing | ||||
| Installation angle | 60° | 60° | ||||
| Cost | Low | High | ||||
| Service Life | Long | Relatively long | ||||
| Frequency of use | Commonly used | Less used | ||||
| Temperature | 5～50℃ | 5～50℃ | ||||
| Specific gravity (g/cm³) | 0.92 | 1.8 | ||||
| Characteristics | Flexible, easy to float | Acid and alkali resistant | ||||
| Production method | Factory prefabricated | Factory prefabricated | ||||
Slant Plate Filler Feature
Straight Pipe Characteristics
● The treatment efficiency is higher than that of activated sludge method, and the general hydraulic load is 100-200 m³/m²-day, and the organic load is 2,000-5,000 grams/m³, so it reduces the floor space.
● Aeration intensity is lower than the activated sludge method, and does not require sludge reflux, so it can reduce power consumption and simplify management.
● The sludge produced by good sedimentation, conducive to the removal of suspended solids in the latter part.
● Strong adaptability, can adapt to different water quality range, water quality, sudden changes in the impact of the load of the endurance is strong, to maintain a stable treatment effect.
Tube Pipe Characteristics
● large wet perimeter, small hydraulic radius.
● Good laminar flow state, particle settling is not disturbed by flocculation.
● Use honeycomb inclined pipe at the water intake, when the length of the pipe is 2.0-3.0 meters, it can be safely operated and treated in high turbidity with 50-100 kg/m³ sediment content.
● Using the tube sedimentation tank, its treatment capacity is 3-5 times of the advection sedimentation tank, accelerated clarification tank and pulse clarification tank 2-3 times.
Company Advantages
· Deft design,compact structure and small in size.
· The product is developed with characteristics of stable performance and good durability.
· There is a steady demand for the product currently, but it will be more widely applied due to its increasing popularity in the market.
Company Features
· DUBHE has been holding a dominant position in inclined plate settler business.
· At present, we have explored markets in Australia, America, the Middle East, and other countries. These customer networks have helped us grow into a stronger competitor.
· Shanghai Dubhe Environmental Protection Technology Co.,Ltd is willing to join hands with all parties for further development in inclined plate settler field. Check now!
Application of the Product
Our inclined plate settler can be used in multiple areas of multiple industries.
We have been engaged in the production and management of Wastewater Treatment Equipment,Reverse Osmosis Membrane Element,Air aerator,Biofilter media,Membrane system,Solid Liquid separation Machine,Pump,Air Blower,industrial mixer for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
