Technical Data & External Dimensions

IRDS Internally Fed Rotary Drum Screen Specification List

Model	Slot（mm)	IRDS06-900	IRDS08-900	IRDS08-1200	IRDS08-1500	IRDS10-1500	IRDS10-1800	IRDS10-2100
Dimensions Of Screen	mm	Φ600×900	Φ800×900	Φ800×1200	Φ800×1500	Φ1000×1500	Φ1000×1800	Φ1000×2100
Treating capacity（m³/hr）	0.5	25	44	59	74	106	128	149
	0.75	43	76	102	127	182	219	255
	1	64	113	150	188	269	323	377
	1.5	97	170	227	284	407	488	570
	2	120	211	282	352	505	605	706
Dimensions (L×W×H)	m	1.7×0.95×1.21	1.8×1.15×1.46	2.1×1.15×1.46	2.4×1.15×1.46	2.4×1.35×1.71	2.7×1.35×1.71	3.0×1.35×1.71
Influent Flange	DIN	DN80	DN150	DN150	DN150	DN200	DN200	DN200
Effluent Flange	DIN	DN150	DN200	DN200	DN200	DN250	DN250	DN250
Spray Influent	G	G3/4"	G1"	G1"	G1"	G1"	G1"	G1"
Solids Discharge	mm	137×250	137×300	137×300	137×300	137×400	137×400	137×400
Net Weight	kg	320	440	496	552	680	750	820
Operation Weight	kg	345	520	600	676	888	990	1100
Power	Kw	0.18	0.37	0.37	0.37	0.55	0.55	0.55

IRDS Internally Fed Rotary Drum Screen Specification List

Model	Slot(mm)	IRDS12-1800	IRDS12-2100	IRDS12-2400	IRDS14-1800	IRDS14-2100	IRDS14-2400	IRDS14-2700
Dimensions of Screen	mm	Φ1200×1800	Φ1200×2100	Φ1200×2400	Φ1400×1800	Φ1400×2100	Φ1400×2400	Φ1400×2700
Treating capacity(m³/hr)	0.50	166	194	221	206	240	275	309
	0.75	285	332	380	354	413	472	531
	1.00	420	490	560	522	609	696	783
	1.50	636	742	848	790	921	1053	1184
	2.00	788	920	1051	979	1237	1413	1590
Dimensions(L×W×H)	2.76x1.55x1.96	3.06x1.55x1.96	3.36x1.55x1.96	3.76x1.75x2.26	3.06x1.75x2.26	3.36x1.75x2.26	3.66x1.75x2.26	2.76x1.55x1.96
Influent Flange	DN200	DN200	DN200	DN200	DN200	DN200	DN200	DN200
Effluent Flange	DN350	DN350	DN350	DN350	DN350	DN350	DN350	DN350
Solids Discharge	137×500	137×500	137×500	137×600	137×600	137×600	137×600	137×500
Net Weight	927	1008	1089	1069	1163	1256	1350	927
Operation Weight	1215	1338	1465	1403	1549	1684	1838	1215
Power	0.75	0.75	0.75	1.10	1.10	1.10	1.10	0.75

Advantages of IRDS

•Compared with the external inlet drum grating, the scum is removed from the end of the drum and does not enter the subsequent stages.

•Compared with the external inlet drum grating, it is suitable for treating sewage with large amount of scum and complex type of scum, such as poultry, slaughtering, breeding and other wastewater.

•Compared with the external inlet drum grating, slow speed, high stability, basically no wearing parts.

Product details

A-5 (20)

A-7 (9)

A-1 (27)

IRDS Rotary Drum Grille – Fibre Filtration Processes

Rotary Drum Screen Design Rotary Drum Screen Wholesale - DUBHE 13

COMPANY STRENGTH

When the raw water containing fibre impact drum grille drum surface, much larger than the length of the mesh diameter of the fibre cannot pass through the perforated mesh surface, is retained in the drum body wall, with the rotation of the drum, through the end of the slag outlet. Close to the length of the mesh diameter fibres are mostly retained in the inner wall of the drum.

Rotary Drum Screen Design Rotary Drum Screen Wholesale - DUBHE 14

COMPANY STRENGTH

There is a part of the probability of fibre perpendicular to the mesh, through the perforated mesh plate, the probability is not large, but reduce the fibre removal rate. There exists a part of the fibres smaller than the length of the mesh diameter, blocked by large fibres, are also retained in the inner wall of the drum, improving the fibre removal rate.

D-1

In short, the choice of mesh diameter should be based on the length of the majority of fibres in the raw water accounted for a percentage of the decision, otherwise affect the fibre removal rate.

Fibre Movement Processes

Being mesh plate retained fibres in the drum enrichment, enrichment fibre blocked part of the mesh, reducing the grille water capacity, in the drum grille selection of the early stage, will be in advance to take into account the clogging factor.

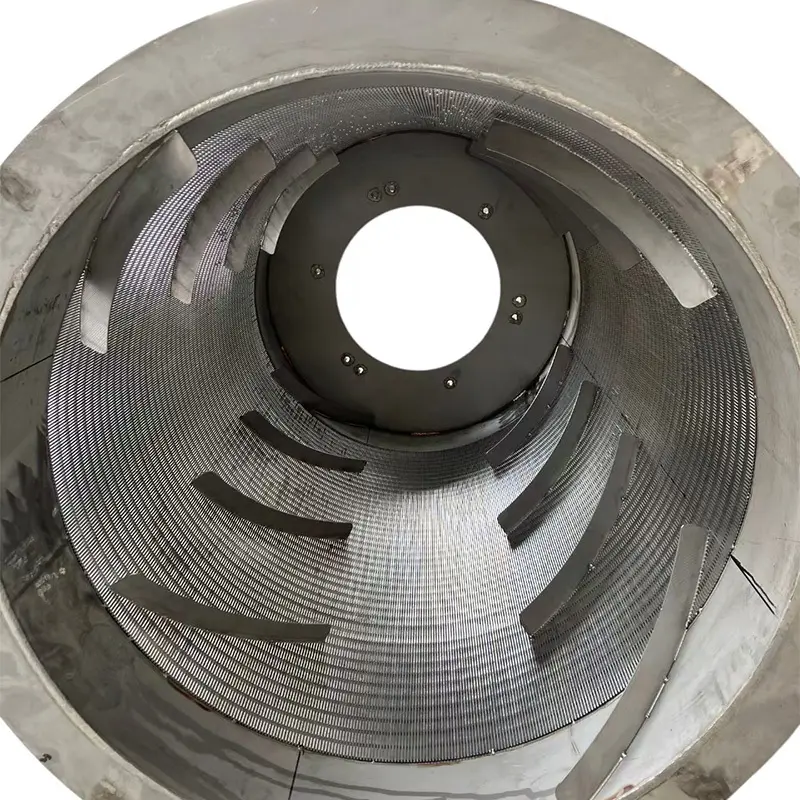

When the enriched fibre reaches a certain amount, with the rotation of the drum and the internal slag screw guidance, open the "snowball" mode, the fibre attached to the inner wall of the drum rolled into a "ball", with self-cleaning ability.

Part of the fibres stuck in the mesh or the gap, through the backwash nozzle cleaning, back into the drum, joining the "snowball" mode.

2/3 of the length of the drum is designed to be used for passing water and 1/3 for draining to ensure that the moisture content of the slag at the end is within a reasonable range.

Company Advantages

· The materials of DUBHE rotary drum screen design are sourced from suppliers that enforce strict social standards in their factories.

· This product has been recognized by industry experts for its excellent performance.

· Shanghai Dubhe Environmental Protection Technology Co.,Ltd has many years effort in rotary drum screen design manufacturing industry.

Company Features

· Shanghai Dubhe Environmental Protection Technology Co.,Ltd is one of the most known, liked and trusted companies in China. We are skilled in designing and manufacturing rotary drum screen design.

· With advanced laboratories, DUBHE can create superior rotary drum screen design with more confidence and win customers' attention.

· The devotion of DUBHE is to provide the best rotary drum screen design with the competitive price. Call!

Application of the Product

Our rotary drum screen design can be used in a variety of industries to play a certain role.

We strive to provide customers with efficient, complete, and flexible solutions based on their needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
