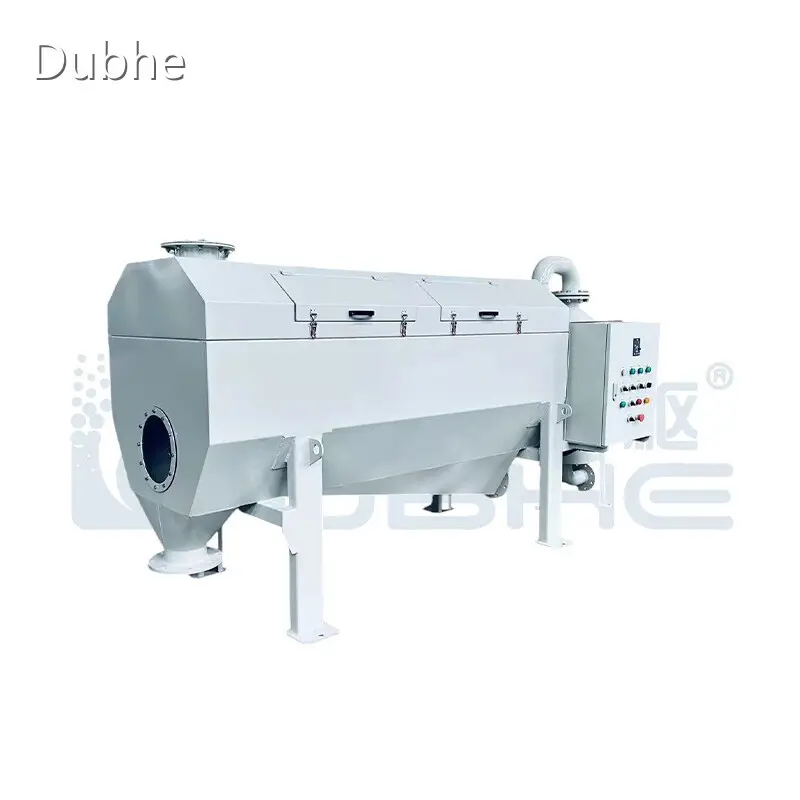

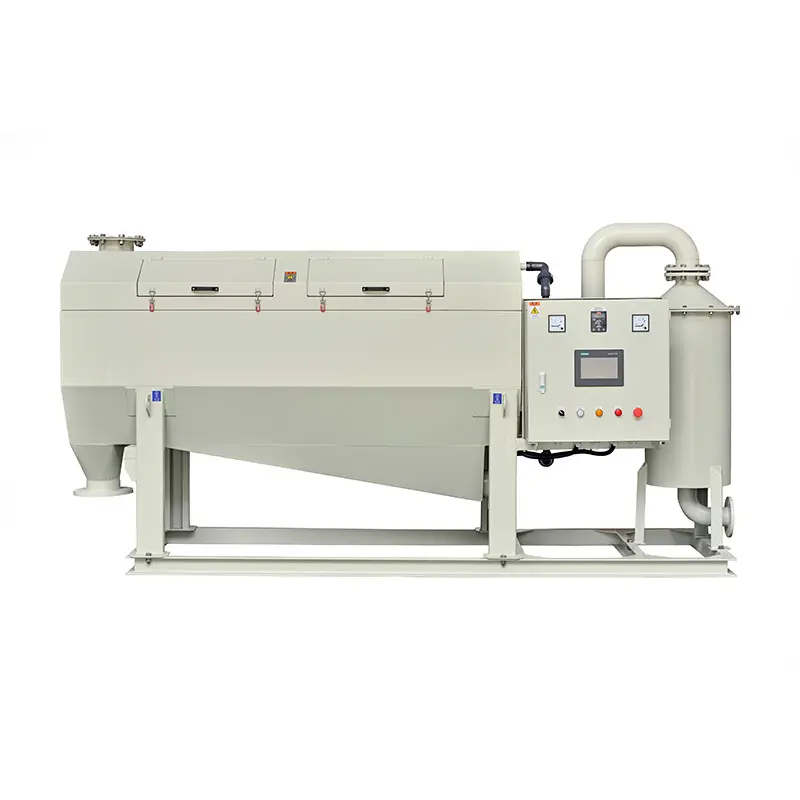

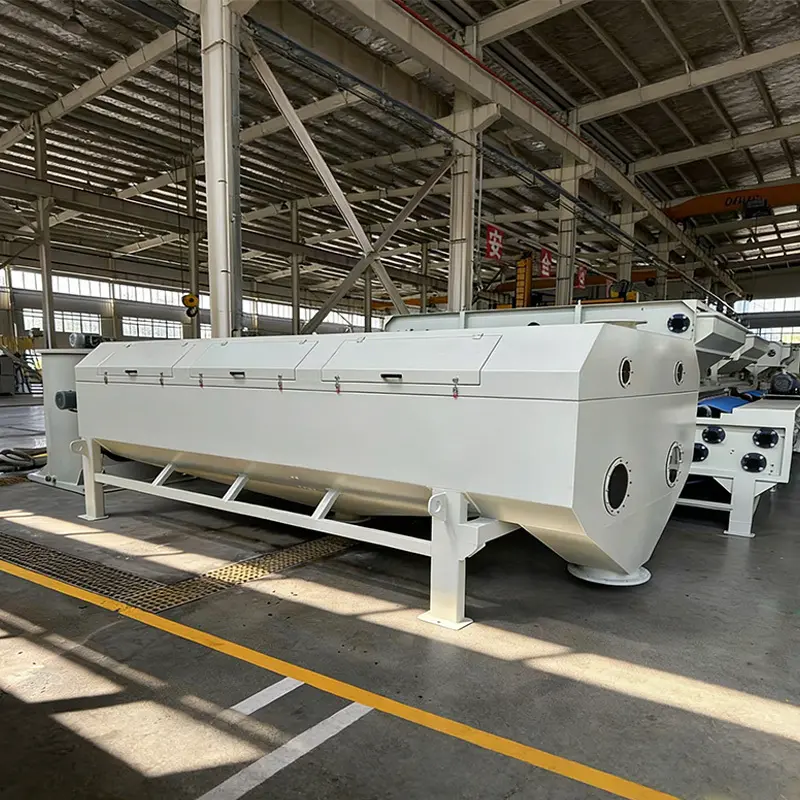

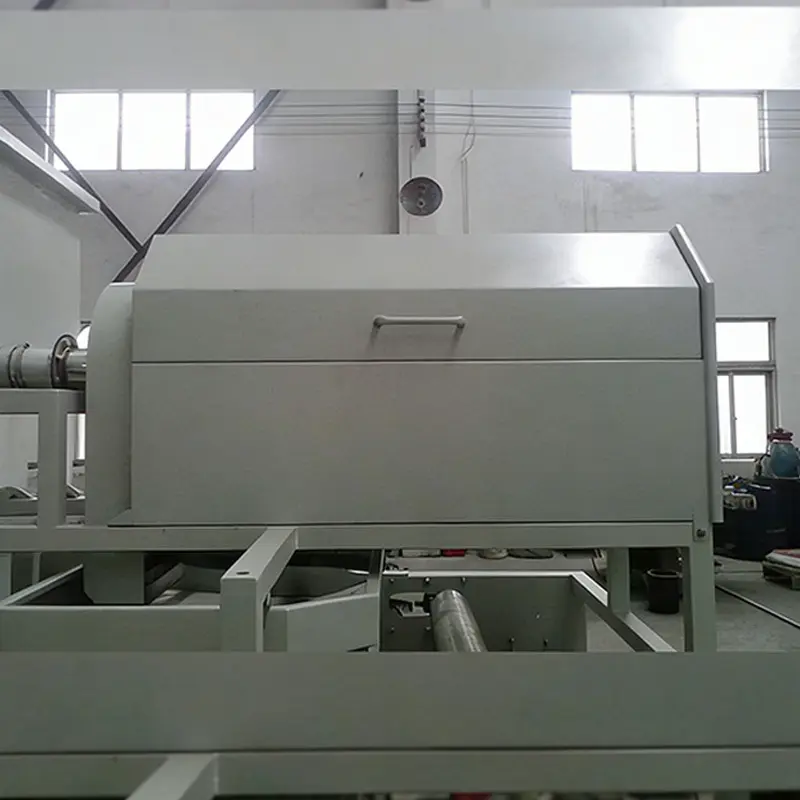

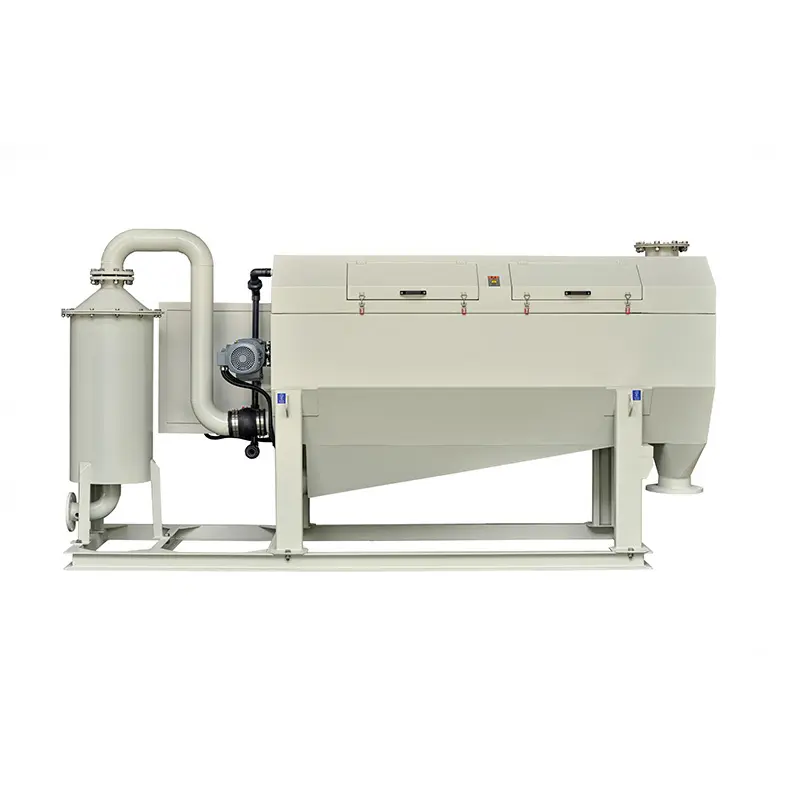

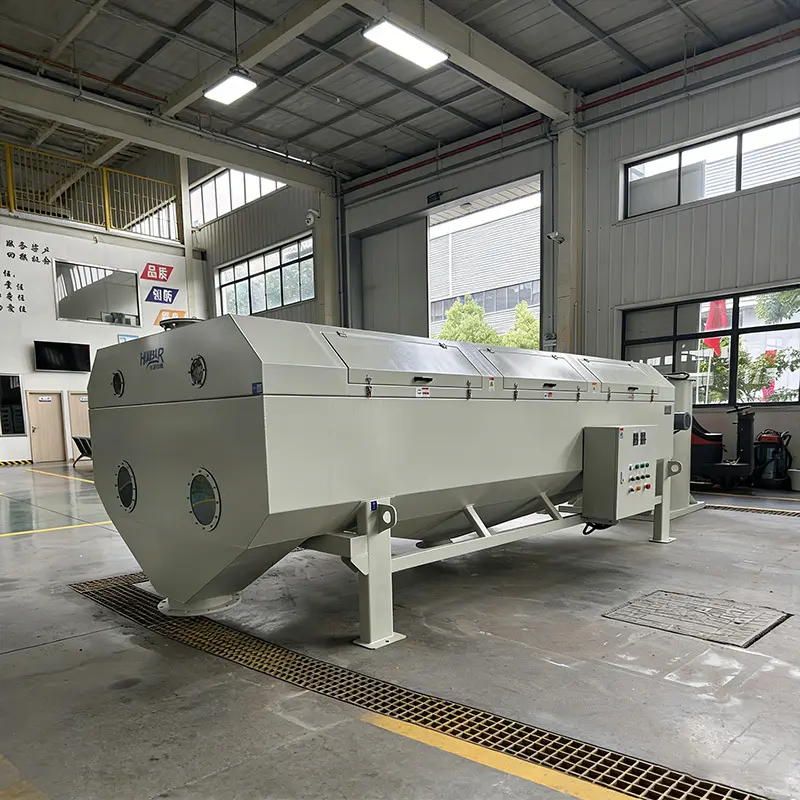

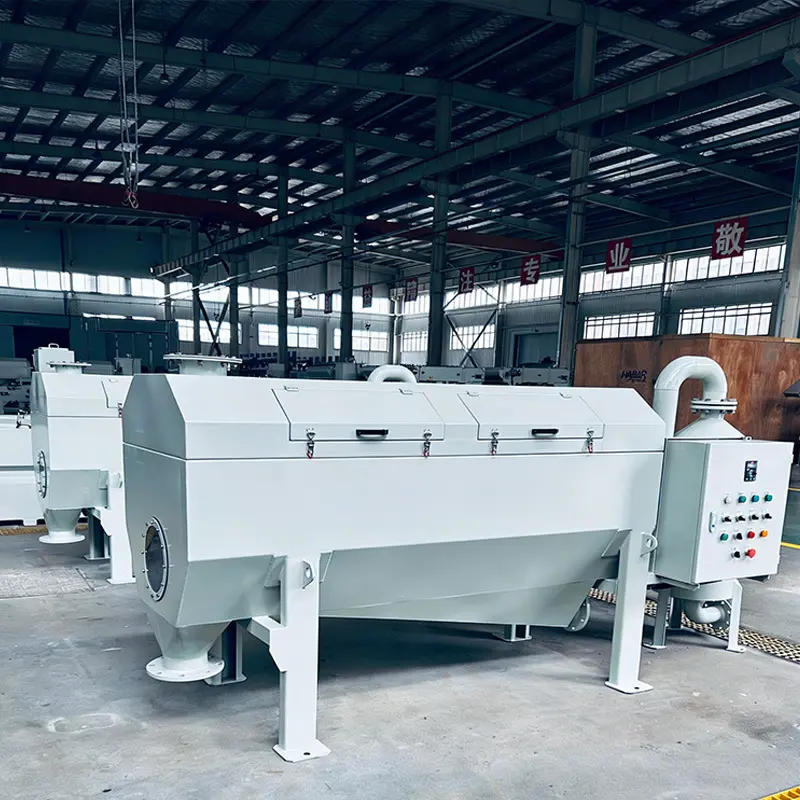

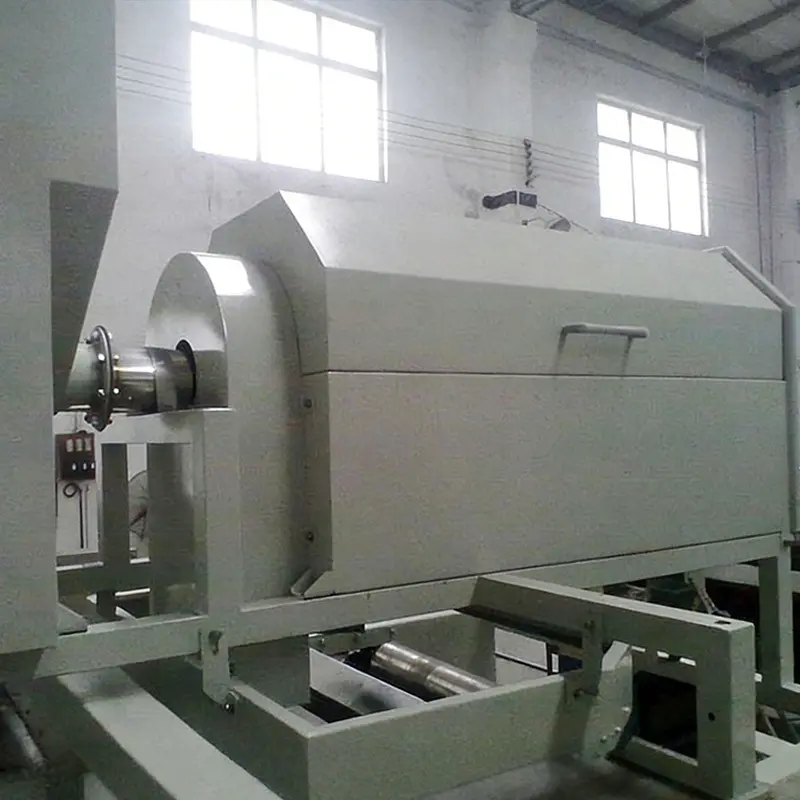

Rotary Screen Thickener by DUBHE

Company Advantages

· Shanghai Dubhe Environmental Protection Technology Co.,Ltd always focuses on the industry trends to make rotary screen thickener keep up with the trend.

· The competitive advantages of this product are as follows: long service life, good performance and excellent quality.

· Shanghai Dubhe Environmental Protection Technology Co.,Ltd has established a complete sales network.

Technical Data & External Dimensions

Model			DHNS-5	DHNS-10	DHNS-20	DHNS-30	DHNS-40	DHNS-50	DHNS-60	DHNS-80	DHNS-100
Spec
Machine Frame Material	Standard Option		Stainless steel (SUS304)
			(SS400/SS41) (SU5316) (Other special materials)
Filter Opening (micron) (mm)			30-80	30-80	30-80	30-80	30-80	30-80	30-80	30-80	30-80
Treating Capacity  (m³/hr) Inlet Consistency (S.S. 0.4~2.0%)			2~6	6~12	11~23.5	22~32.5	33~42.5	41~52	45~63	61~83	80~105
Dried Sludge D.S  (kg/hr)			40~70	90~120	150~220	240~310	260~420	290~510	360~600	540~900	620~1250
Sludge Outlet Consistency  (%)			3.5~11	3.5~11	3.5~11	3.5~11	3.5~11	3.5~11	3.5~11	3.5~11	3.5~11
Power Consumption  (HP)	Standard Accessories	Driving Motor (Frequency control)	½	½	¾	1	1	1	1×2	1×2	1×2
		Flocculator Tank Motor	¼	¼	¼	¾	¾	¾	¾	¾	1
	Option Accessories	Washing Pump	1	1	1	1	1½	1½	2	2	2
Lower Collecting Tray for Pressed Filtrate			Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
External Dimensions   (mm) (Reference)	L1		2075	2085	2525	2525	2545	3015	2525	2545	3015
	L		2708	2808	3344	3448	5900	4048	3498	3648	4148
	W		938	1038	1058	1078	3700	1128	1800	1900	1900
	H		1206	1340	1485	1535	2400	1845	1535	1595	1845
Reference Weight (kgs)			300	450	700	1050	2700	1320	1450	2000	2560

Remark: Treating capacity and the water content rate depend on the slurry feature.

Please ask for the actual installation dimension before ordering.

Belt Filter Thickeners

Technical Data & External Dimenisons

Model				DHBT-1000	DHBT-1500	DHBT-2000	DHBT-2500	DHBT-3000
Spec
Machine Frame Material		Standard		Stainless steel (SUS304)
		Option		(SS400/SS41) (SU5316) (Other special materials)
Filter Belt Width（mm）				1000	1500	2000	2500	3000
Treating Capacity(m³/hr)Inlet Consistency (S.S. 0.4~2.0%)				30~45	45~65	65~85	85~105	95~125
Dried Sludge  D.S (kg/hr)				120~360	180~585	260~808	320~1050	380~1313
Sludge Outlet Consistency (%)				3.5~11	3.5~11	3.5~11	3.5~11	3.5~11
Power Consunption (Hp)	Standard Accessories		Driving Motor (Frequency control)	¾	¾	1½	1½	2
			Flocculator Tank Motor	¾	¾	¾	¾	¾
	Option Accessories		Washing Pump	2	2	2	3	3
Lower Collecting Tray for Pressed Filtrate				None	None	None	None	None
External Dimensions (mm) (Reference)			L1	4200	4300	4700	4700	4800
			L	5100	5300	5800	5850	5900
			W	1550	2050	2550	3200	3700
			H	2100	2250	2400	2400	2400
Reference Weight (kgs)				1250	1500	1850	2250	2700

Remark: Treating capacity and the water content rate depend on the slurry feature.

Please ask for the actual installation dimension before ordering.

Peripheral Equipment Configuration Reference Diagram

B-1 (17)

B-2 (22)

Feature:

● Higher than 96% solid recovery rate.● Steady operation with little to no noise.● Easy operation and maintenance ensures a long service life.● The perfect thickening effect can easily even out the varying sludge concentrations.● The costs of land, construction and labor are all saved as this machine takes up less floor space with its simple structure, small flocculent requirements and fully automatic operation.

Company Features

· Shanghai Dubhe Environmental Protection Technology Co.,Ltd, widely known as a credible China-based manufacturing company, has a strong ability in developing and producing rotary screen thickener.

· We've built up a team of quality people who are committed to getting the job done right, every time. ​They are highly skilled and experienced workers, which enables us to finish our projects at the highest level. We have a factory featuring a good location, which provides easy access to customers, workers, materials, and so on. This will maximize our business opportunity while minimizing our costs and risks. We have a professional sales team. They have years of expertise in the marketing and sales of rotary screen thickener, allowing us to distribute our products around the world and helps us establish a solid customer base.

· Persist in striving to create rotary screen thickener for the world is a principle of DUBHE. Check it!

Product Comparison

Dubhe's rotary screen thickener is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.
