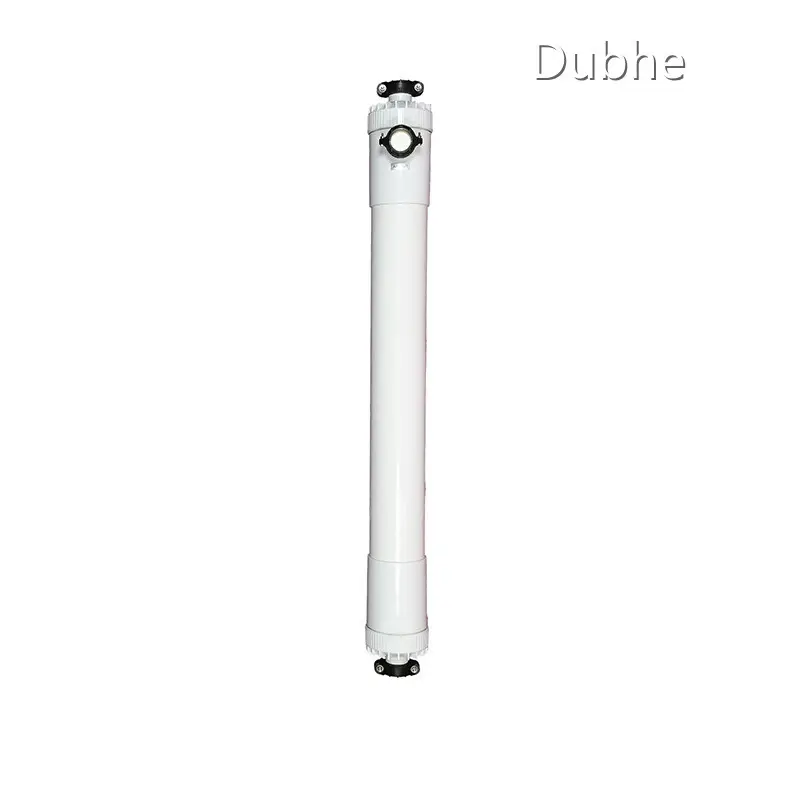

Product details of the ultrafiltration membrane water treatment
Quick Detail
DUBHE ultrafiltration membrane water treatment is made of high quality and durable raw materials which undergo strict screening procedures. This product has comprehensive functionality and high performance. Quantitative market research have been conducted at all phases of ultrafiltration membrane water treatment design process.
Product Information
More detailed information on ultrafiltration membrane water treatment is shown for you at below.
Technical Specification
| Membrane Properties | Unit | Value |
| Membrane Material | PVDF | |
| Nominal Pore Size | μm | 0.01 |
| Effective Membrane Area (Outside) | m² (ft²) | 90 (969) |
| Operating Parameters | Unit | Value |
| Maximum Feed/Product Flow | m³/h (gpm) | 15 (66) |
| Maximum Backwash Flow | m³/h (gpm) | 16.8 (74) |
| Maximum Air Flow | Nm³/h (scfm) | 9.0 (5.3) |
| Maximum Feed Pressure | kPa (psi) | 300 (43.5) |
| Maximum Backwash Pressure | kPa (psi) | 300 (43.5) |
| Normal Operating TMP | kPa (psi) | 0–200 (0–29) |
| Operating Temperature Range | °C (°F) | 1–40 (34–104) |
| pH Range | During Operation | 1-10 |
| During Operation | 0-12 |

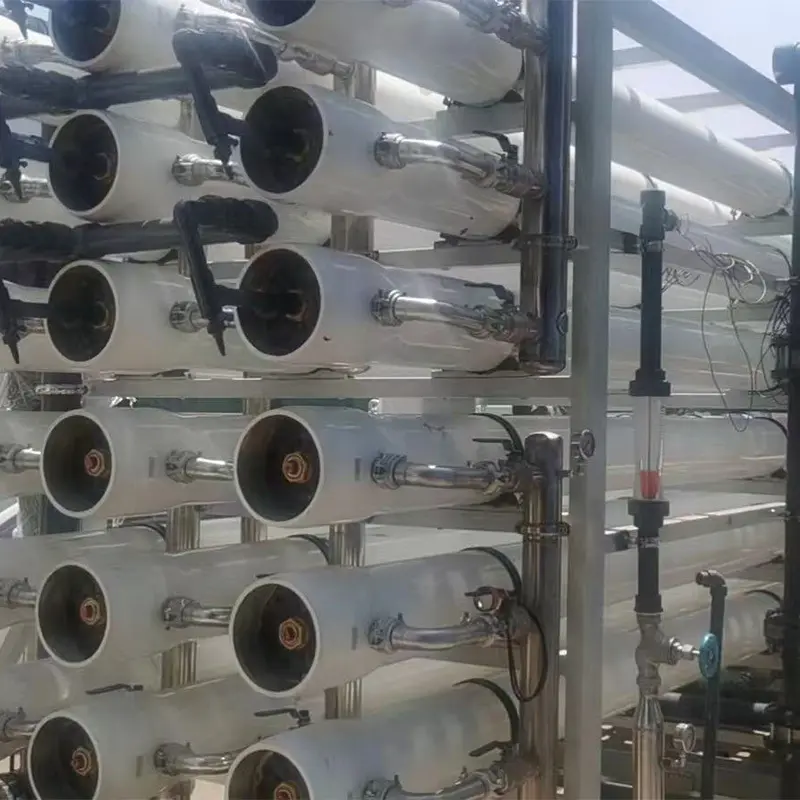

Product scenario
Company Introduction
Having been involving in the R&D, design, and production of ultrafiltration membrane water treatment, Shanghai Dubhe Environmental Protection Technology Co.,Ltd has become the first choice for many customers. Technology from Shanghai Dubhe Environmental Protection Technology Co.,Ltd has reached international advanced level. We are determined to become the leader in the ultrafiltration membrane water treatment industry and have strong confidence to accomplish this goal. We will rely on technological innovation and the cultivation of the R&D team to optimize our products and strengthen our manufacturing capabilities.
We can provide you with high-quality products and look forward to your cooperation with us.
