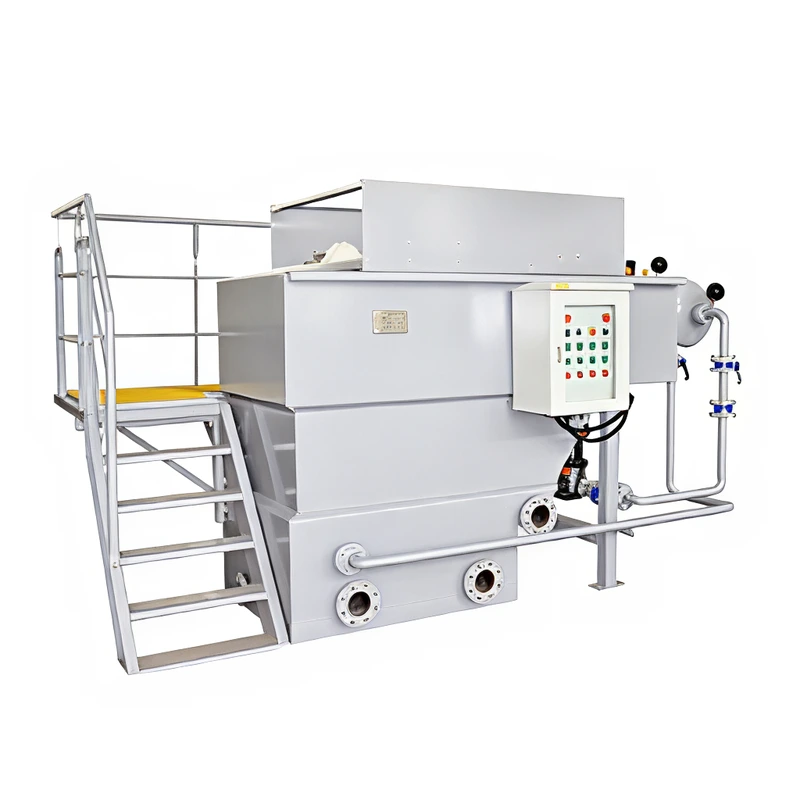

DAF Dissolved Air Flotation Machine

Air flotation working and system principles:

Air flotation separation is to mix air and water under certain pressure and conditions, so that the gas can be dissolved into the water to the maximum extent, striving to be in a saturated state, and then the pressure-dissolved water formed can be released through a special device to rapidly produce a large amount of gas. The micro bubbles are in full contact with the floating matter in the water (flocculation after dosing).

Under the action of "net catching", "wrapping" and "bridging" of the purple particles, the bubbles and the floating matter form a stable The density of the air-entrained floc is smaller than that of water, so the air-entrained floc quickly rises to the water surface, and the floating matter condenses into scum on the liquid surface. The scum is scraped and removed to achieve the purpose of solid-liquid separation.

Inquiry

download

气浮机-电子样册

Write a Review

Product Introduction

The effect of solid-liquid separation mainly depends on the following three aspects:

•What is the characteristic of floc formed after adding medicine to the floating matter in the water body? Is it hydrophilic or hydrophobic (appropriate dosing).

•During the mixing reaction, ensure that there are enough micro bubbles in time and full contact with the flocs.

•During the separation reaction, the solid, gas, and liquid mixture should have an appropriate residence time and a stable flow pattern to allow the "air-entrained floc" to float to the liquid surface and form scum. Controlling the flow state of liquid is one of the keys to the separation effect.

Features

● Overall complete set, compact structure, cost-effective market retention, high maturity, stable performance, reliable operation.

● Hydraulic load: 4~6m³/(m²/h).

● Allowable concentration of floating matter can be up to 3000mg/L.

● Floaters can realize automatic skimming, solid content can be as high as 30~100g/L applied to solid flocs density is generally lighter than water or close to water, precipitation phenomenon is weak water quality.

Application Scenarios

•Industrial wastewater pretreatment: food processing, pharmaceuticals, textile printing and dyeing, semiconductors, machinery, steel, chemical industry, aquaculture and other industries wastewater.

•Sewage treatment plant: sewage pretreatment, upgrading, phosphorus removal.

•Water treatment plant: algae removal.

•Ecology: river, lake purification, landscape water treatment.

•Desalination project.

Technical Parameters

Model	Treatment capacity	Power meter(kw)			Size			Orifice gauge
Model	m³/h	Dissolved air pump	Aerators	Skimmer	L/L1	W/W1	H/H1	Water inlet	Water outlet	Mud vent
DAF-002	~2	0.75	0.55	0.2	3.3/2.5	2.4/1.16	2.1/1.7	50	50	80
DAF-003	~3	0.75	0.55	0.2	3.6/2.8	2.4/1.16	2.1/1.7	50	50	100
DAF-005	~5	1.1	0.55	0.2	3.9/3.0	2.4/1.16	2.1/1.7	80	50	100
DAF-010	~10	1.1	0.55	0.2	4.3/3.2	2.9/1.66	2.3/1.9	100	100	100
DAF-015	~15	2.2	0.75	0.2	5.4/4.3	2.9/1.66	2.3/1.9	100	100	100
DAF-020	~20	3.0/5.5	0.75	0.2	5.4/4.3	3.1/2.16	2.3/1.9	150	100	100
DAF-030	~30	3.0/5.5	0.75	0.2	6.5/5.4	3.1/2.16	2.3/1.9	150	150	150
DAF-040	~40	3.0/5.5	0.75	0.2	6.7/5.5	3.6/2.7	2.7/2.3	200	150	150
DAF-050	~50	7.5	1.5	0.2	7.6/6.3	3.6/2.6	2.7/2.3	200	150	150
DAF-060	~60	7.5	1.5	0.2	7.9/6.6	4.0/3.0	2.7/2.3	250	200	150
DAF-070	~70	11	1.5	0.2	9.2/7.9	4.0/3.0	2.7/2.3	250	200	150
DAF-080	~80	11	1.5	0.2	9.6/8.4	4.0/3.0	2.7/2.3	250	200	150
DAF-100	~100	15	2.2	0.2	10.7/9.4	4.4/3.4	2.7/2.3	300	250	150
DAF-120	~120	15	2.2	0.2	11.7/10.4	4.4/3.4	2.7/2.3	300	250	150
DAF-150	~150	18.5	2.2	0.2	12.5/11.4	4.4/3.8	2.7/2.3	300	250	150

DAF2 Air Flotation Machine

Roll Flow Daf

Sedimentation occurs during the flotation process, which is particularly serious in the wastewater pre-treatment section, and a large amount of sediment affects the quality of the effluent and the stability of the operation DAF2 air flotation machine can effectively eliminate sediment to ensure the stable operation of the flotation process.

Features and Advantages

•The upgraded version of the standard air flotation has higher operational stability and reliability.

•High hydraulic load: 4~8m³/(m²/h).

•Allowable influent flotation concentration up to ~4000mg/l.

•Automatic discharge of floating slag, with a solid content of up to 30-100%.

•The whole unit can be dismantled for easy transportation and installation. The use of "W" type sludge collecting hopper and side closed scraping system ensures the safety of operation.

•Apply to the water quality with obvious sedimentation phenomenon.

DAF2 Parameter Table

Model	Treatment capacity	Power meter(kw)			Dimension(m)			Nozzle list
Model	m³/h	Dissolved air pump	Air compressor	Skimmer	L/L1	W/W1	H/H1	Water inlet	Water outlet	Sludge outlet
DAF2-010	~10	1.5	0.55	0.2	4.5/3.2	2.9/1.66	2.6/2.2	100	100	100
DAF2-015	~15	2.2	0.75	0.2	5.6/4.3	2.9/1.66	2.6/2.2	100	100	100
DAF2-020	~20	3.0/5.5	0.75	0.2	5.6/4.3	3.1/2.16	2.6/2.2	150	100	100
DAF2-030	~30	3.0/5.5	0.75	0.2	6.7/5.4	3,1/2.16	2.6/2.2	150	150	150
DAF2-040	~40	3.0/5.5	0.75	0.2	6.9/5.5	3.6/2.7	2.6/2.2	200	150	150
DAF2-050	~50	7.5	1.5	0.2	7.6/6.3	3.6/2.7	2.6/2.2	200	150	150
DAF2-060	~60	7.5	1.5	0.2	8.1/6.6	4.0/3.0	2.9/2.5	250	200	150
DAF2-070	~70	11	1.5	0.2	9.4/7.9	4.0/3.0	2.9/2.5	250	200	150
DAF2-080	~80	11	2.2	0.2	9.9/8.4	4.0/3.0	2.9/2.5	250	200	150
DAF2-100	~100	15	2.2	0.2	10.9/9.4	4.4/3.4	2.9/2.5	300	250	150
DAF2-120	~120	15	2.2	0.2	11.9/10.4	4.4/3.4	2.9/2.5	300	250	150
DAF2-150	~150	18.5	2.2	0.2	12.5/11.44	4.8/3.8	2.9/2.5	350	300	150

这是选项卡内部的组件，您可以继续追加组件

Reinventing Air Flotation – Roll Flow Dissolved Air Flotation

For more than 30 years, the air flotation process has been widely used and recognized. At present, the application field of dissolved air flotation has been expanded from the initial industrial wastewater pretreatment to municipal, seawater desalination and other fields. The new field of air flotation equipment level, scale of treatment, separation efficiency, operation and economic indicators put forward new higher requirements after more than 10 years of research, DUBHE air flotation team invented a new generation of air flotation, a high-efficiency convoluted air flotation shiny debut. High-efficiency rolled flow air flotation is a new design of high load, large capacity dissolved air flotation products. DUBHE team made a comprehensive design on the flow pattern, flow rate, density distribution of dissolved air water, etc., and cited the FLUENT system to calculate the final shape of the rolled-flow air flotation subverted the traditional design concept of air flotation, which is a revolutionary innovation of the air flotation technology.

Features and Advantages

•Large water volume, single processing capacity of up to 30,000 tons/day.

•High load, the measured operating load of 25m/h, which is 2~3 times of the traditional advection or shallow layer air flotation.

•Low energy consumption, compared with the traditional air flotation machine energy saving 15-30%.

•Occupation saving, saving 20~40% compared with traditional air flotation.

•Good water quality, SS less than 5mg/L, phosphorus less than 0.1mg/L.

Operating Data

Rolling flow air flotation - municipal high-speed type (RF-SDAF): treatment of 200m³/h and above; low concentration of suspended solids in the influent water (~ 100mg / L) of the industry, such as: municipal and industrial wastewater treatment plant upgrading or phosphorus removal, lakes, rivers, as well as ecological landscape water purification and treatment, seawater pre-treatment, and so on. Hydraulic load operation 15~25m/h, effluent 0~5mg/L.

Model	Treatment capacity	Power meter(kw)			Dimension(m)			Nozzle list（DN）
Model	m³/h	Dissolved air pump	Air compressor	Skimmer	L/L1	W/W1	H/H1	Water inlet	Drain outlet	Sludge outlet	Sludge outlet
RF-SDAF200	5000	11	1.5	0.2	4.8	3.8/3.6	2.9/2.6	350	300	150	100
RF-SDAF400	10000	18.5	2.2	0.2	8.3	3.8/3.6	2.9/2.6	450	400	150	100
RF-SDAF500	12000	18.5	2.2	0.2	9.5	3.8/3.6	2.9/2.6	500	450	150	100
RF-SDAF600	15000	22	3	0.2	11.7	3.8/3.6	2.9/2.6	550	450	150	100
RF-SDAF800	20000	18.5*2	3	0.2	15.2	3.8/3.6	2.9/2.6	450*2	400*2	150*2	100
RF-SDAF1000	24000	18.5*2	3	0.2*2	20.3	3.8/3.6	2.9/2.6	500*2	450*2	150*2	100
RF-SDAF1200	30000	22*2	4	0.2*2	24.6	3.8/3.6	2.9/2.6	550*2	450*2	150*2	100

Application Cases

C-4

C-1 (6)

Industry: Workshop cleaning wastewater

Project Name: Toyota Motor

Capacity: 3m³/h

Product Name: Standard air flotation DAF

Case Introduction: Toyota Machinery Workshop Cleaning Wastewater Treatment

Characteristics of workshop cleaning wastewater: Containing oil, organic matter, surfactant, cleaning agents and other difficult to degrade substances, as well as residual metal ions on the equipment, sediment and other solid particles and other fine residues, polluting rivers and lakes, and destroying the natural ecological environment.

In this project, with the use of our standard sedimentation type air flotation to sedimentation and separation of sediment and other large particles, while the suspended matter and other further enhancement of the treatment to improve the hydraulic load, to achieve efficient solid-liquid separation.

C-2 (4)

C-3 (6)

Sector: Slaughtering Wastewater

Project Name: Laoxiang Chicken Fast Food

Capacity: 20m³/h

Product Name: Standard air flotation-DAF

Case Introduction: Laoxiang Chicken Slaughtering Wastewater Treatment Case

Laoxiang Chicken, the largest fast food chain in Anhui Province, has a signature dish - "Feixi Old Hen Soup". Laoxiang Chicken is a catering industry featuring breeding ten chickens, and the main components of the catering wastewater are leftover food and water, with starch, food fiber, animal fats and other organic matter as the main components, which are characterized by high nutrients, high water content, high oil and salt content, and easy to decay and fermentation and odor.

Laoxiang chicken attaches great importance to environmental protection, to realize green production, our company suggests the use of standard air flotation design to solve a large number of breeding, catering wastewater, in addition to a large number of suspended solids in food wastewater SS and oil and grease, to ensure that the latter part of the depth of the treatment system for the stable operation of the discharge of the standard!
