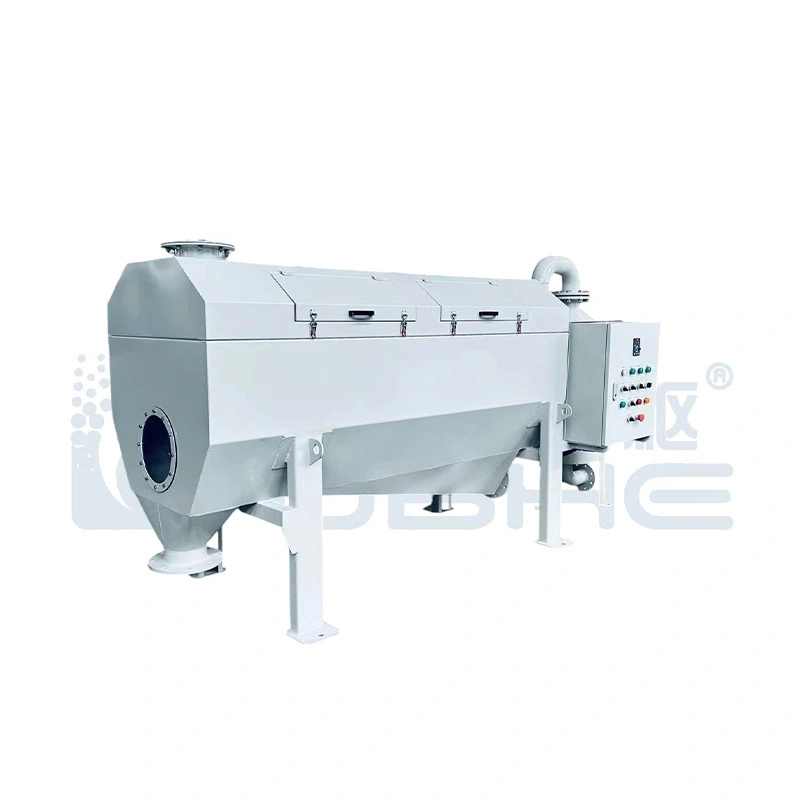

Rotary Drum Thickeners
The DHNS / DHBT series thickeners utilize either rotary drum thickening or filter belt gravity thickening processes to achieve high solid content treatment. It saves land, building and labor costs due to its simple structure, low flocculant requirement and fully automatic operation.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Data & External Dimensions
| Model |
DHNS-5 | DHNS-10 | DHNS-20 | DHNS-30 | DHNS-40 | DHNS-50 | DHNS-60 | DHNS-80 | DHNS-100 | ||
| Spec |
|||||||||||
| Machine Frame Material | Standard Option | Stainless steel (SUS304) | |||||||||
| (SS400/SS41) (SU5316) (Other special materials) | |||||||||||
| Filter Opening (micron) (mm) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | ||
| Treating Capacity (m³/hr) Inlet Consistency (S.S. 0.4~2.0%) |
2~6 | 6~12 | 11~23.5 | 22~32.5 | 33~42.5 | 41~52 | 45~63 | 61~83 | 80~105 | ||
| Dried Sludge D.S (kg/hr) | 40~70 | 90~120 | 150~220 | 240~310 | 260~420 | 290~510 | 360~600 | 540~900 | 620~1250 | ||
| Sludge Outlet Consistency (%) | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | ||
| Power Consumption (HP) | Standard Accessories | Driving Motor (Frequency control) | ½ | ½ | ¾ | 1 | 1 | 1 | 1×2 | 1×2 | 1×2 |
| Flocculator Tank Motor | ¼ | ¼ | ¼ | ¾ | ¾ | ¾ | ¾ | ¾ | 1 | ||
| Option Accessories | Washing Pump | 1 | 1 | 1 | 1 | 1½ | 1½ | 2 | 2 | 2 | |
| Lower Collecting Tray for Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| External Dimensions (mm) (Reference) | L1 | 2075 | 2085 | 2525 | 2525 | 2545 | 3015 | 2525 | 2545 | 3015 | |
| L | 2708 | 2808 | 3344 | 3448 | 5900 | 4048 | 3498 | 3648 | 4148 | ||
| W | 938 | 1038 | 1058 | 1078 | 3700 | 1128 | 1800 | 1900 | 1900 | ||
| H | 1206 | 1340 | 1485 | 1535 | 2400 | 1845 | 1535 | 1595 | 1845 | ||
| Reference Weight (kgs) | 300 | 450 | 700 | 1050 | 2700 | 1320 | 1450 | 2000 | 2560 | ||
Remark: Treating capacity and the water content rate depend on the slurry feature.
Please ask for the actual installation dimension before ordering.
Belt Filter Thickeners
Technical Data & External Dimenisons
| Model |
DHBT-1000 |
DHBT-1500 |
DHBT-2000 |
DHBT-2500 |
DHBT-3000 |
|||
| Spec |
||||||||
| Machine Frame Material | Standard | Stainless steel (SUS304) | ||||||
| Option | (SS400/SS41) (SU5316) (Other special materials) | |||||||
| Filter Belt Width（mm） | 1000 | 1500 | 2000 | 2500 | 3000 | |||
| Treating Capacity(m³/hr) Inlet Consistency (S.S. 0.4~2.0%) |
30~45 | 45~65 | 65~85 | 85~105 | 95~125 | |||
| Dried Sludge D.S (kg/hr) | 120~360 | 180~585 | 260~808 | 320~1050 | 380~1313 | |||
| Sludge Outlet Consistency (%) | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | 3.5~11 | |||
| Power Consunption (Hp) | Standard Accessories | Driving Motor (Frequency control) | ¾ | ¾ | 1½ | 1½ | 2 | |
| Flocculator Tank Motor | ¾ | ¾ | ¾ | ¾ | ¾ | |||
| Option Accessories | Washing Pump | 2 | 2 | 2 | 3 | 3 | ||
| Lower Collecting Tray for Pressed Filtrate | None | None | None | None | None | |||
| External Dimensions (mm) (Reference) | L1 | 4200 | 4300 | 4700 | 4700 | 4800 | ||
| L | 5100 | 5300 | 5800 | 5850 | 5900 | |||
| W | 1550 | 2050 | 2550 | 3200 | 3700 | |||
| H | 2100 | 2250 | 2400 | 2400 | 2400 | |||
| Reference Weight (kgs) | 1250 | 1500 | 1850 | 2250 | 2700 | |||
Remark: Treating capacity and the water content rate depend on the slurry feature.
Please ask for the actual installation dimension before ordering.
Peripheral Equipment Configuration Reference Diagram
B-1 (17)
B-2 (22)
Feature:
● Higher than 96% solid recovery rate.
● Steady operation with little to no noise.
● Easy operation and maintenance ensures a long service life.
● The perfect thickening effect can easily even out the varying sludge concentrations.
● The costs of land, construction and labor are all saved as this machine takes up less floor space with its simple structure, small flocculent requirements and fully automatic operation.
● Steady operation with little to no noise.
● Easy operation and maintenance ensures a long service life.
● The perfect thickening effect can easily even out the varying sludge concentrations.
● The costs of land, construction and labor are all saved as this machine takes up less floor space with its simple structure, small flocculent requirements and fully automatic operation.
