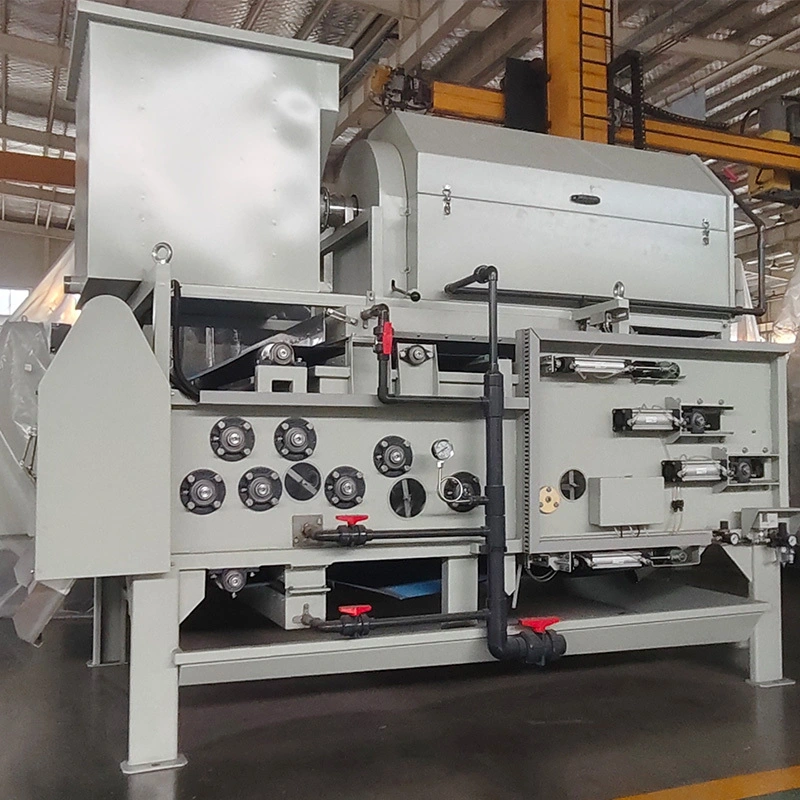

Rotary Drum Thickener - HTB Series
The belt filter press is widely utilized across multiple industries as an integrated thickening and dewatering system, providing a complete solution for sludge and wastewater treatment.
DUBHE's belt filter press is 100% independently designed and manufactured. Its compact structure enables efficient processing of diverse sludge and wastewater types across a wide capacity range. Renowned in the industry, our equipment delivers exceptional performance characterized by high efficiency, reduced energy and polymer consumption, operational cost savings, and extended service life.
The HTB Series represents an economical belt press solution distinguished by its advanced rotary drum thickening technology.
DUBHE's belt filter press is 100% independently designed and manufactured. Its compact structure enables efficient processing of diverse sludge and wastewater types across a wide capacity range. Renowned in the industry, our equipment delivers exceptional performance characterized by high efficiency, reduced energy and polymer consumption, operational cost savings, and extended service life.
The HTB Series represents an economical belt press solution distinguished by its advanced rotary drum thickening technology.
● Processing Capacity: 1.9 - 17.0 m³/hr
● Absolute Dry Solids: 30-233 kg/hr
● Cake Water Content: 85%
● Belt Width: 500mm, 750mm, 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2500mm
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Data & External Dimensions of Belt Filter Press
| Spec. Model | HTB-500 | HTB-750 | HTB-1000 | HTB-1250 | HTB-1500 | HTB-1500L | HTB-1750 | HTB-2000 | HTB-2500 | ||
| Belt Width (mm) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | 2500 | ||
| Treating Capacity (m³/hr) Inlet Consistency (S.S. 15~2.5%) |
2.8~5.7 | 4.3-8.2 | 6.2~11.5 | 7.2~13.7 | 9.0-17.6 | 11.4-22.6 | 14.2-26.8 | 17.1~36.0 | 26.5~56.0 | ||
| Dried Sludge (D.S) (kg/hr) | 45-82 | 73-125 | 98-175 | 113-206 | 143-240 | 180-320 | 225-385 | 270-520 | 363-700 | ||
| Water Content Rate (%) | 63-83 | 63-83 | 63-83 | 63-83 | 63-83 | 63-83 | 63-83 | 63-83 | 63-83 | ||
| Power Consumption (HP) |
Driving Motor (Speed Variable) | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 | 1 | 2 | |
| Flocculator Tank Motor | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 | 1 | ||
| Drum Thickener Motor | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 | 1 | ||
| Lower Collecting Tray for Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | None | None | None | ||
External Dimension(mm)(Reference) |
(L) | 2600 | 2600 | 2600 | 2600 | 2800 | 3200 | 3450 | 3450 | 3550 | |
| (W) | 1050 | 1300 | 1550 | 1800 | 2100 | 2150 | 2350 | 2600 | 3100 | ||
| (H) | 2150 | 2300 | 2300 | 2300 | 2400 | 2400 | 2550 | 2550 | 2650 | ||
| Base Dimension L1×W1 (mm) | 2100×836 | 2100×1086 | 2100×1336 | 2100×1986 | 2100×1836 | 2450×1848 | 2450X2098 | 2680×2370 | 2695×2886 | ||
| Peference Weight (kgs) | 950 | 1120 | 1360 | 1620 | 2050 | 2400 | 2650 | 3250 | 3850 | ||
CAD
B-1 (14)
B-2 (18)
Features
● Integrated rotary drum thickening and dewatering treatment processes
● Wide range of normal applications
● The best performance is found when the inlet consistency is 1.5-2.5%.
● Installation is easy due to the compact structure and normal sizes.
● Automatic, continuous, simple, stable and safe operation
● Operation is environmentally friendly due to the low energy consumption and low noise levels.
● Easy maintenance ensures the longevity of operation.
● The patented flocculation system reduces the polymer consumption.
● 7 to 9 segmented press rollers support different treatment capacities with the best treatment effect.
● The pneumatic adjustable tension achieves an ideal effect in compliance with treatment processes.
● A galvanized steel rack can be customized when the belt width reaches more than 1500mm.
ACCESSORIES
C-4 (2)
Filter cloth deviation correction device: Automatically and continuously detects and corrects filter cloth misalignment to ensure smooth machine operation and extend the service life of the filter cloth.
C-5
Sludge distributor: Evenly spreads the concentrated sludge on the upper filter cloth to ensure uniform pressure distribution during dewatering, improving dehydration efficiency and extending the service life of the filter cloth.
C-6
Cylinder Three-Point Tensioning Device: Utilizes pneumatic cylinder tension to tighten the filter cloth, ensuring stable operation within a defined range with no leakage and high safety.
C-2 (5)
Press roller: Made of SUS304 material, reinforced with TIG welding, and precision-machined for a robust structure that resists breakage.
C-1 (7)
Synchronous pulley: The drive roller in the pressing section adopts a synchronous gear design, which ensures reliable operation, low failure rate, and easy maintenance, thereby enhancing operational stability.
C-3 (7)
Waterproof ring: Installed on the inner side of the bearing, it prevents water from splashing into the bearing during the operation of the dewatering machine, thereby extending the bearing's service life.
C-7
Main Drive: Equipped with internationally renowned NORD gear reducers to ensure stable operation, long service life, and low maintenance costs. Alternatively, SEV brand gear reducers can be selected based on requirements.
C-8
Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.
C-9
Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.
