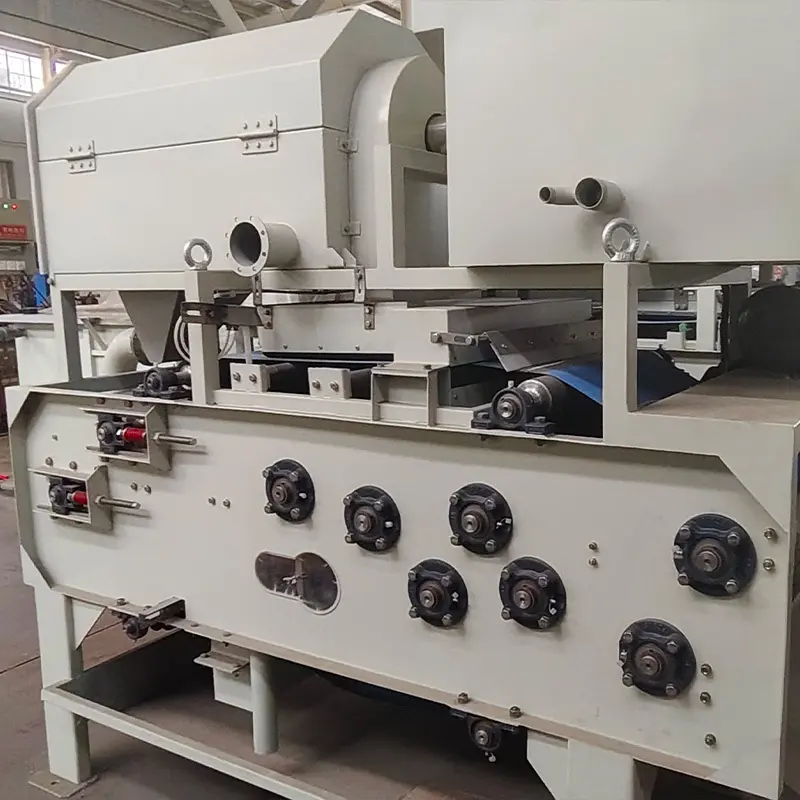

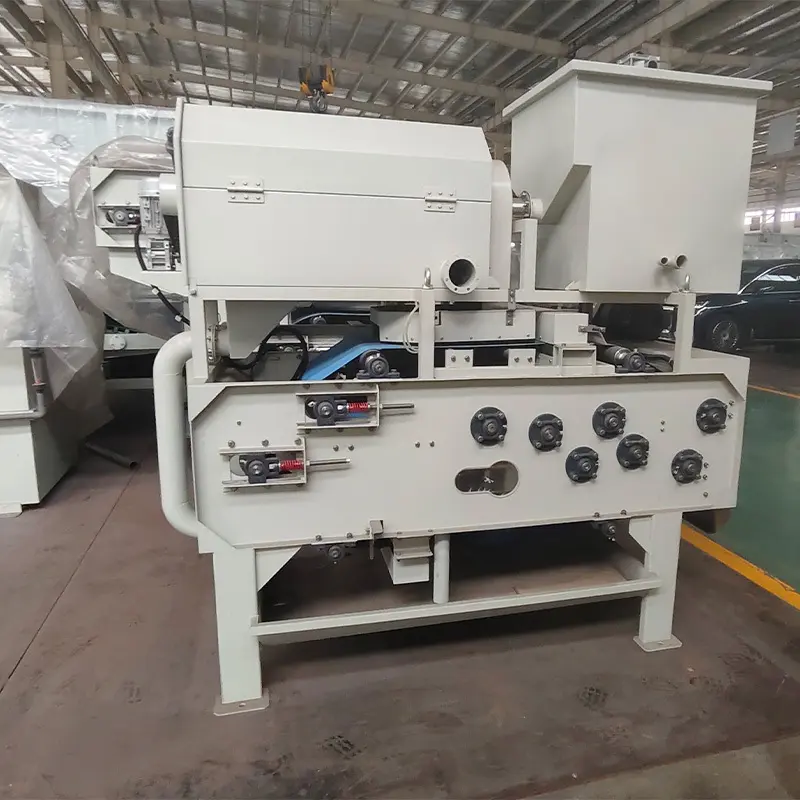

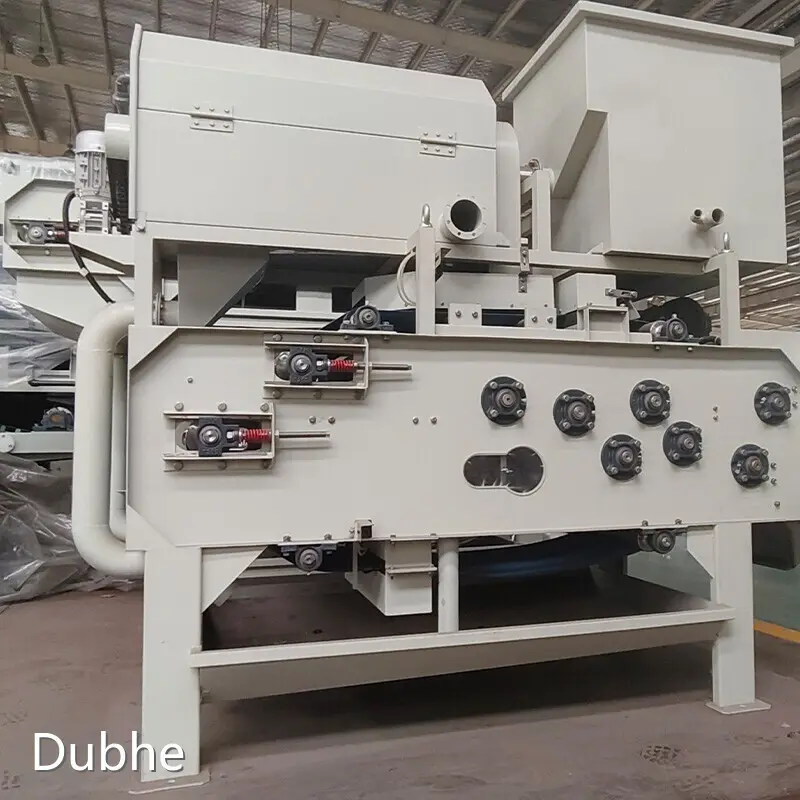

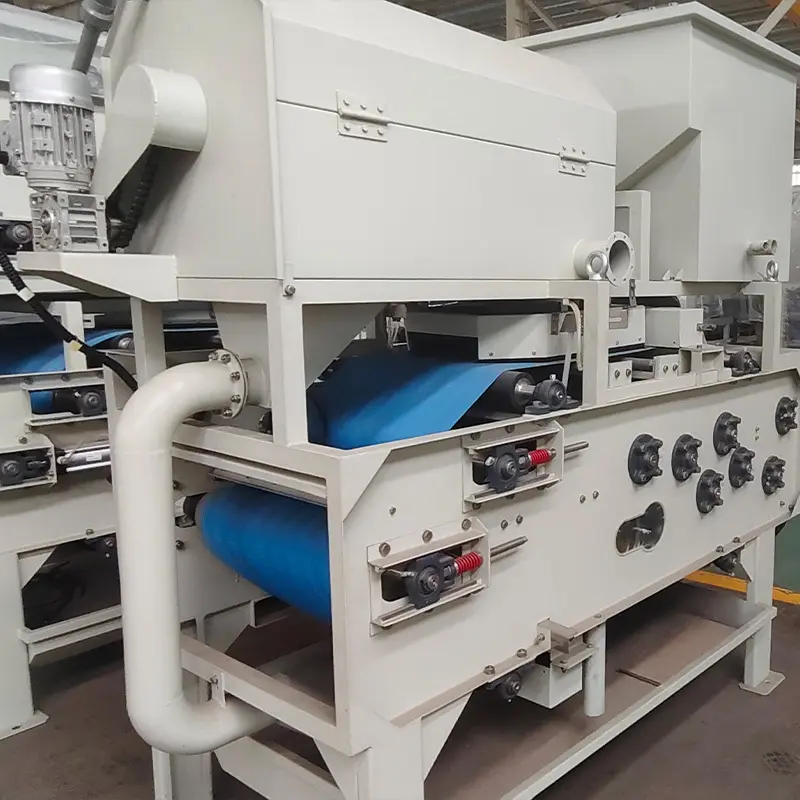

Rotary Drum Thickener by DUBHE

Company Advantages

· DUBHE rotary drum thickener has rich and varied design structures that meet the needs of customers.

· The quality of our rotary drum thickener is so great that you can definitely rely on.

· Moving into the new century, DUBHE remains fully committed to innovation.

Technical Data & External Dimensions of Belt Filter Press

Spec. Model		HTA-500	HTA-750	HTA-1000	HTA-1250	HTA-1500	HTA-1500L
Belt Width (mm)		500	750	1000	1250	1500	1500
(m³/hr) Treating Capacity(S.S.1.5~2.5%) Inlet Consistency		1.9~3.9	2.9~5.5	3.8~7.6	5.2~10.5	6.6~12.6	9.0~17.0
D.S(kg/hr)  Dried Sludge		30~50	45~75	63~105	83~143	105~173	143~233
(%) Water Content Rate		66~84	66~84	66~84	66~84	66~84	66~84
(HP) Power Consumption	Driving Motor (Speed Variable)	1/2	1/2	1/2	1/2	1	1
	Flocculator Tank Motor	1/4	1/4	1/4	1/2	1/2	1/2
	Drum Thickener Motor	1/4	1/4	1/4	1/2	1/2	1/2
Lower Collecting Tray for Pressed Filtrate		Yes	Yes	Yes	Yes	Yes	Yes
External Dimension (Reference)	(L)	2200	2200	2200	2200	2560	2900
	(W)	1050	1300	1550	1800	2050	2130
	(H)	2150	2150	2200	2250	2250	2600
(mm) Base Dimension L1×W1		1465×830	1465×1080	1465×1330	1465×1580	1465×1830	2110×1900
(kgs) Reference Weight		760	890	1160	1450	1960	2150

CAD

B-2 (17)

B-1 (13)

Features

● Integrated rotary drum thickening and dewatering treatment processes.

● Wide range of economical applications.

● The best performance is found when the inlet consistency is 1.5-2.5%.

● Installation is easy due to the compact structure and small size.

● Automatic, continuous, stable and safe operation

● Environmentally friendly operation is due to the low energy consumption and low noise levels.

● Easy maintenance assists in the long service life.

● The patented flocculation system reduces polymer consumption.

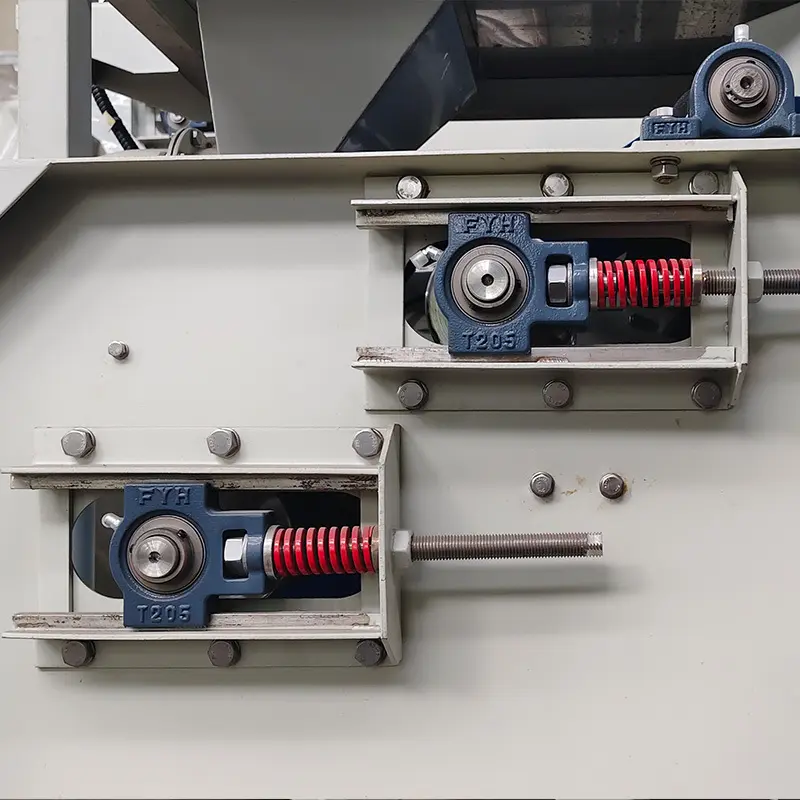

● The spring tension device is durable and features a long service life with no need for maintenance.

● 5 to 7 segmented press rollers support different treatment capacities with the matched best treatment effect.

ACCESSORIES

C-4 (2)

Filter cloth deviation correction device: Automatically and continuously detects and corrects filter cloth misalignment to ensure smooth machine operation and extend the service life of the filter cloth.

C-5

Sludge distributor: Evenly spreads the concentrated sludge on the upper filter cloth to ensure uniform pressure distribution during dewatering, improving dehydration efficiency and extending the service life of the filter cloth.

C-6

Cylinder Three-Point Tensioning Device: Utilizes pneumatic cylinder tension to tighten the filter cloth, ensuring stable operation within a defined range with no leakage and high safety.

C-2 (5)

Press roller: Made of SUS304 material, reinforced with TIG welding, and precision-machined for a robust structure that resists breakage.

C-1 (7)

Synchronous pulley: The drive roller in the pressing section adopts a synchronous gear design, which ensures reliable operation, low failure rate, and easy maintenance, thereby enhancing operational stability.

C-3 (7)

Waterproof ring: Installed on the inner side of the bearing, it prevents water from splashing into the bearing during the operation of the dewatering machine, thereby extending the bearing's service life.

C-7

Main Drive: Equipped with internationally renowned NORD gear reducers to ensure stable operation, long service life, and low maintenance costs. Alternatively, SEV brand gear reducers can be selected based on requirements.

C-8

Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.

C-9

Multi-function Electrical Control Box: Incorporates globally renowned components—Omron and Schneider for electrical elements, Siemens for PLC, Danfoss and German ABB for frequency converters—ensuring stable performance and user-friendly operation. Equipped with leakage protection for enhanced safety.
