Hollow Fiber Membrane for Biogas Digester Home
Product Introduction

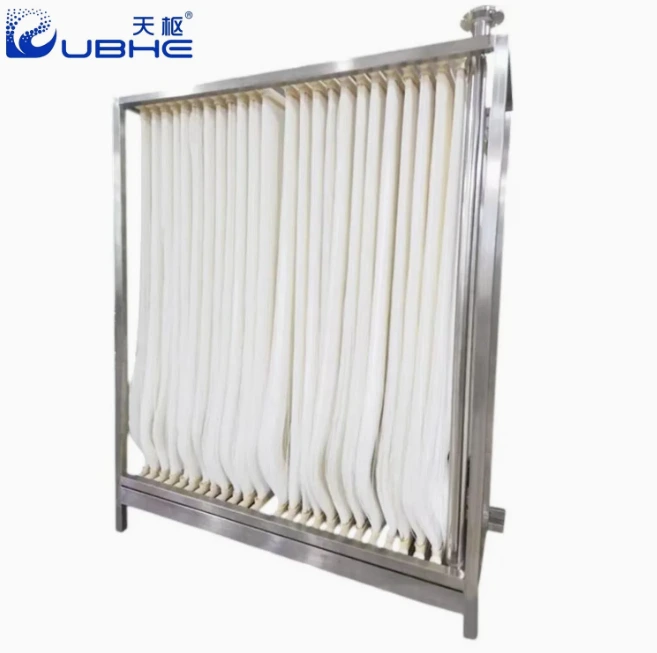

The membrane module equipped in the MBR membrane assembly is an enhanced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (MBR). This membrane module is characterized by its hollow fiber membrane material, which is made from PVDF resin, offering high strength, wear resistance, long service life, large water flux per unit membrane area, and excellent oxidation resistance. The membrane module adopts an ultra-thin design with minimal thickness, featuring an optimal membrane fiber packing density, appropriate fiber length, and well-designed collection piping.
Technical Parameters
| MODEL | A (MM) | B (MM) | C (MM) | Membrane Area (m²) |
| RM-MBR-18-2.0 | 1520 | 572 | 50 | 20 |
| RM-MBR-24-2.0 | 1930 | 572 | 50 | 27 |
| RM-MBR-28-2.0 | 2140 | 572 | 50 | 30 |
| RM-MBR-18-2.0 | 1520 | 824 | 50 | 30 |
| RM-MBR-34-2.0 | 1930 | 824 | 50 | 40 |
| RM-MBR-40-2.0 | 2140 | 824 | 50 | 46 |
| RM-MBR-18-2.6 | 1040 | 572 | 50 | 12 |
| RM-MBR-17-2.6 | 1520 | 572 | 50 | 17 |
| RM-MBR-22-2.6 | 1930 | 572 | 50 | 22 |
| RM-MBR-26-2.6 | 2140 | 572 | 50 | 26 |
| RM-MBR-17-2.6 | 1520 | 824 | 50 | 25 |
| RM-MBR-34-2.6 | 1930 | 824 | 50 | 35 |
| RM-MBR-37-2.6 | 2140 | 824 | 50 | 39 |
Product details
Remark
(1) Below this temperature range, the impact of temperature on flux reduction needs to be considered.
(2) Water Production: Under an influent water temperature of 15-25°C, the stable average membrane flux of the MBR process is 25 L/(m²·hr). However, the actual water production design must be determined based on specific influent water quality and process design. For detailed information, please consult our company.
Membrane Module Operating Conditions
① Suitable for municipal wastewater, domestic sewage, and organic industrial wastewater treatment.
② Maximum transmembrane pressure during operation: <50 kPa.
③ Operating water temperature: 15–35°C.
④ pH range: 6–9.
