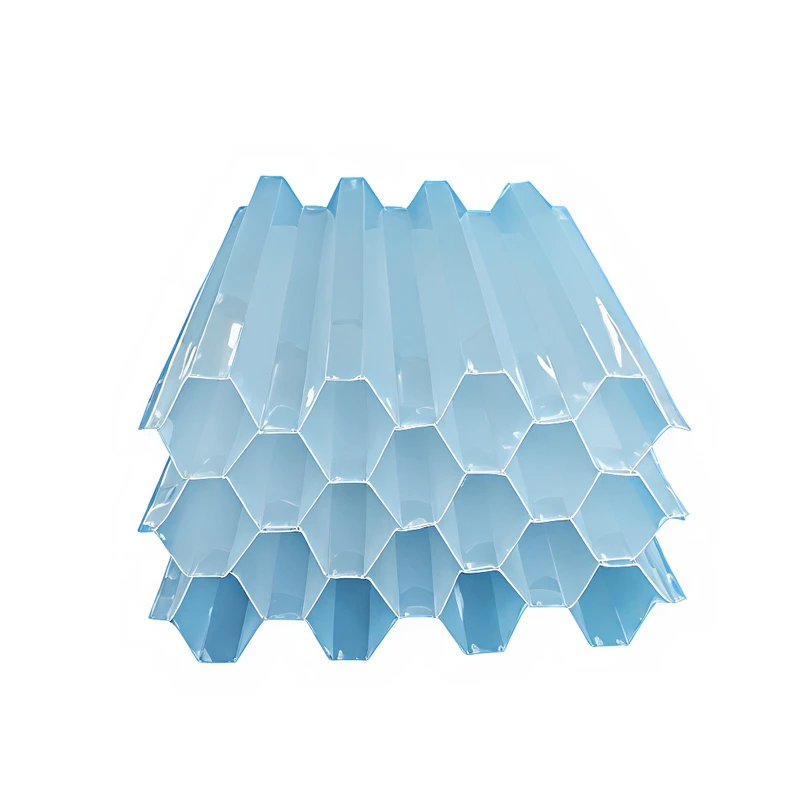

Slant Tube Filler / Slant Plate Filler
Technical Data: Slant Tube Filler
| Specifications | Sheet thickness (mm) | Pieces /m² | Weight (kg/m²) |
Specific surface area (m²/m³) For reference only |
| Φ25 | 0.40 | 60 | 27 | 116 |
| 0.45 | 60 | 29 | 116 | |
| 0.50 | 60 | 32 | 116 | |
| Φ35 | 0.35 | 40 | 16 | 109 |
| 0.40 | 40 | 18 | 109 | |
| 0.50 | 40 | 23 | 109 | |
| Φ50 | 0.40 | 30 | 14 | 97 |
| 0.50 | 30 | 17 | 97 | |
| 0.60 | 30 | 20 | 97 | |
| Φ80 | 0.70 | 20 | 14 | 50 |
| 0.80 | 20 | 18 | 50 | |
| 1.00 | 20 | 22 | 50 |
Product Overview
Inclined tube is mainly used for various precipitation and sand removal. It is widely used in water supply and drainage projects in the past ten years and has become a water treatment device. It has the advantages of wide range of application, high treatment effect, small footprint, etc. It is suitable for desanding of water inlet, general industrial and domestic water supply sedimentation. It is suitable for desanding of water inlet, general industrial and domestic water supply sedimentation, sewage sedimentation, oil separation and tailing concentration and other treatments, that is, it is suitable for new construction, and also suitable for the transformation of the existing old pool, and it can achieve good economic benefits.
Straight tube is mainly used in high load biofilter, tower biofilter, submerged biofilter (also known as contact oxidation tank) and microbial carrier of biological rotor, for biochemical treatment of industrial organic wastewater and municipal wastewater.
Technical Data: Slant Plate Filler
| Item | Hexagonal Honeycomb Inclined Tube Packing | |||||
| Material | PP | FRP fiberglass reinforced plastic | ||||
| Specification (mm) | φ35 | φ50 | φ80 | φ35 | φ50 | φ80 |
| Conventional piece/m² | 40 | 30 | 20 | 40 | 30 | 20 |
| Commonly used (mm) | 0.40 | 0.45 | 0.60 | 0.30 | 0.50 | 0.70 |
| Reference (kg/m²) | 18 | 15 | 15 | 41 | 31 | 31 |
| Single size (mm) | 1000×1000×δ | 1000× 1000×δ | ||||
| Molding size | 1000×1000×866 | |||||
| Application | water supply, gray water, wastewater | |||||
| Color | White | Customized | ||||
| Molding method | Soldering iron | Bonding gluing | ||||
| Product Installation | Hot seaming on site | On-site gluing | ||||
| Installation angle | 60° | 60° | ||||
| Cost | Low | High | ||||
| Service Life | Long | Relatively long | ||||
| Frequency of use | Commonly used | Less used | ||||
| Temperature | 5～50℃ | 5～50℃ | ||||
| Specific gravity (g/cm³) | 0.92 | 1.8 | ||||
| Characteristics | Flexible, easy to float | Acid and alkali resistant | ||||
| Production method | Factory prefabricated | Factory prefabricated | ||||
Slant Tube Filler /Slant Plate Filler Feature
Straight Pipe Characteristics
● The treatment efficiency is higher than that of activated sludge method, and the general hydraulic load is 100-200 m³/m²-day, and the organic load is 2,000-5,000 grams/m³, so it reduces the floor space.
● Aeration intensity is lower than the activated sludge method, and does not require sludge reflux, so it can reduce power consumption and simplify management.
● The sludge produced by good sedimentation, conducive to the removal of suspended solids in the latter part.
● Strong adaptability, can adapt to different water quality range, water quality, sudden changes in the impact of the load of the endurance is strong, to maintain a stable treatment effect.
Tube Pipe Characteristics
● large wet perimeter, small hydraulic radius.
● Good laminar flow state, particle settling is not disturbed by flocculation.
● Use honeycomb inclined pipe at the water intake, when the length of the pipe is 2.0-3.0 meters, it can be safely operated and treated in high turbidity with 50-100 kg/m³ sediment content.
● Using the tube sedimentation tank, its treatment capacity is 3-5 times of the advection sedimentation tank, accelerated clarification tank and pulse clarification tank 2-3 times.
