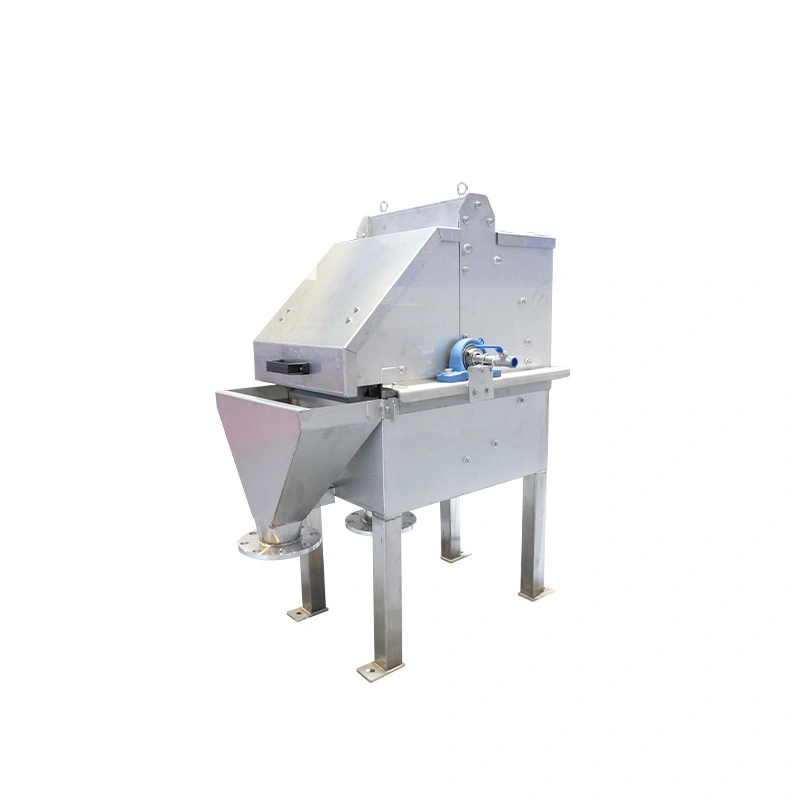

External Rotary Drum Screen
Application: RDS drum screen is a kind of equipment that can continuously and effectively screen out suspended solids in water.
It is maimly used in sewage pretreatment or industrial screening process. In some sewage treatment, the filtered sewage can remove 30% to 60% of organic or inorganic suspended solids, greatly reducing the processing load of the subsequent process.
The equipment is widely used for filtering fine solids in food, brewing, pharmaceutical, dairy and other industries.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
RDS Series Externally-Fed Rotary Drum Screens Specification
| Model | Slot (mm) | RDS03/300 | RDS04/400 | RDS05/500 | RDS06/600 | RDS06/800 | RDS06/1000 | RDS06/1200 | |
| Dimensions Of Screen | mm | Φ300x300 | Φ400×400 | Φ500×500 | Φ600x600 | Φ600x800 | Φ600x 1000 | Φ600x1200 | |
| Treating capacity (m³/hr) | 0.30 | 6 | 11 | 18 | 26 | 35 | 44 | 53 | |
| 0.50 | 9 | 17 | 28 | 41 | 54 | 68 | 82 | ||
| 0.75 | 15 | 29 | 47 | 70 | 93 | 117 | 140 | ||
| 1.00 | 20 | 40 | 64 | 95 | 126 | 158 | 190 | ||
| 1.50 | 32 | 61 | 98 | 143 | 191 | 239 | 287 | ||
| 2.00 | 40 | 74 | 120 | 176 | 234 | 293 | 352 | ||
| Dimensions (L×W×H) | (m) | 0.84×0.94×1.13 | 0.94×1.04×1.23 | 1.05×1.18×1.35 | 1.15×1.28×1.45 | 1.36×1.28×1.45 | 1.56×1.34x1.50 | 1.79×1.28×1.54 | |
| Influent Flange | DIN | DN50 | DN50 | DN80 | DN80 | DN80 | DN100 | DN100 | |
| Effluent Flange | DN80 | DN80 | DN150 | DN150 | DN150 | DN200 | DN200 | ||
| Spray Influent | G | G1/2" | G1/2" | G1/2 | G1/2" | G1/2" | G1/2" | G3/4" | |
| Solids Discharge | (mm) | DN80 | DN80 | DN100 | DN100 | DN100 | DN150 | 2×DN100 | |
| Net Weight | (kg) | 140 | 160 | 240 | 290 | 340 | 385 | 435 | |
| Operation Weight | 215 | 285 | 445 | 595 | 735 | 870 | 1,010 | ||
| Power | (Kw) | 0.25 | 0.25 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | |
| Material | N/A | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | |
Equipment components: drum, drive mechanism, discharge mechanism, recoil pipeline, sealing assembly, inspection door assembly, tank body, slag hopper,etc.
Working process: Sewage (or other raw water) flows into the drum from the front of the drum surface through the drum surface and flows out from the bottom. The suspended solids in the sewage are retained on the rotating drum suface. The intercepted dit is sent from the water inlet end to the discharge end on the other side as the drum surface rotates, and is shoveled off by the discharge mechanism.
IRDS Internally Fed Rotary Drum Screen Specification List
| Model | Slot (mm) | RDS06/1600 | RDS06/2000 | RDS08/2000 | RDS08/2400 | |
| Dimensions of Screen | mm | Φ600 × 1600 | Φ600 ×2000 | Φ800 × 2000 | Φ800 × 2400 | |
| Treating capacity(m³/hr) | 0.30 | 71 | 89 | 122 | 146 | |
| 0.50 | 109 | 137 | 187 | 224 | ||
| 0.75 | 187 | 234 | 319 | 382 | ||
| 1.00 | 253 | 316 | 432 | 518 | ||
| 1.50 | 383 | 479 | 653 | 784 | ||
| 2.00 | 469 | 586 | 800 | 960 | ||
| Dimensions (L×W×H) | (m) | 2.19×1.28×1.55 | 2.59×1.34×1.54 | 2.65×1.54×1.74 | 3.05×1.54×1.74 | |
| Influent Flange | DIN | DN150 | DN150 | DN200 | DN200 | |
| Effluent Flange | DIN | DN250 | DN250 | DN300 | 2×DN300 | |
| Spray Influent | G | G3/4" | G3/4" | G3/4" | G3/4" | |
| Solids Discharge | DIN | 2×DN100 | 2×DN150 | 2×DN150 | 2×DN150 | |
| Net Weight | (kg) | 515 | 610 | 785 | 895 | |
| Operation Weight | 1,270 | 1,545 | 2,150 | 2,520 | ||
| Power | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | |
| Material | N/A | SS304 | SS304 | SS304 | SS304 | |
